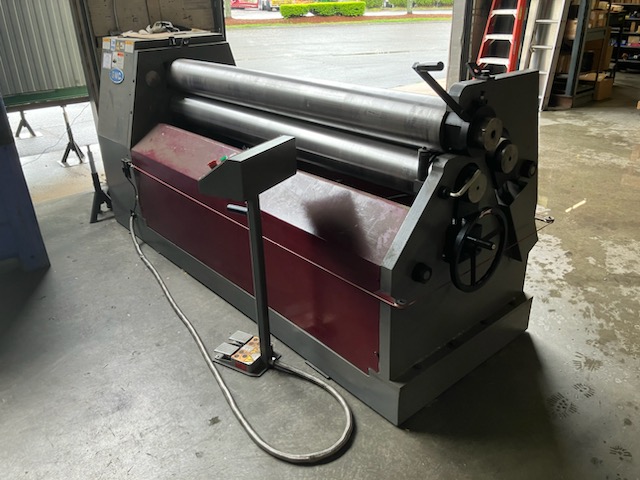

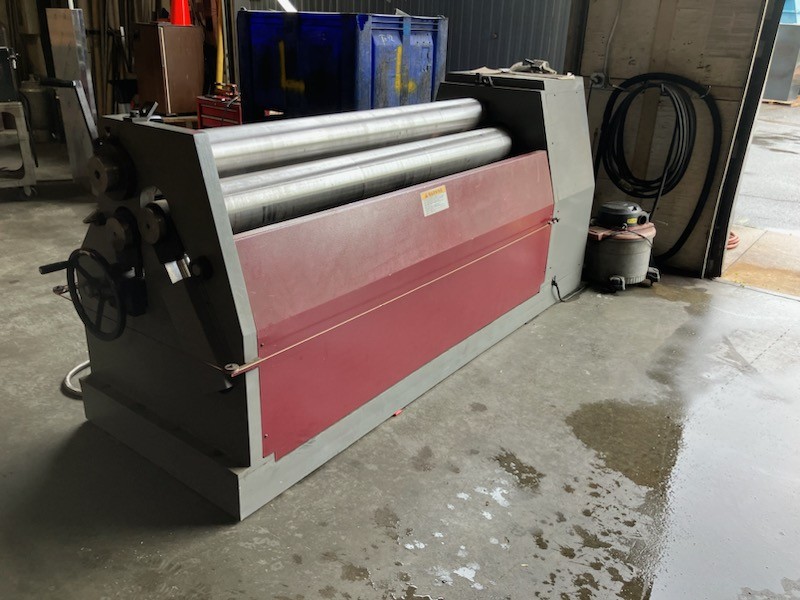

Machine Model- GM HBR-0625
Machine was new Feb 2023
1 owner 6ftx.25″ plate roll
Equipped with standard features:

Standard Features:

• ISO 9001 certified
• Taiwan Machines
• All three rollers are driven
• All three rollers are hardened, up to 50-52 HRC
• Easy swing –out top roller
• Standard cone attachment installed
• 1 each LED indicator for bending roll position
• Safety line all around the machine for emergency stop
• Heavy Duty all steel welded machine construction
• German Hydraulic logic system centrally located and quiet
• Bending roll is hydraulic powered up/down & tilting adjustment
• Planetary reduction gear and pump
• All three rolls are made of high grade alloy steel
• All rolls run forward and reverse

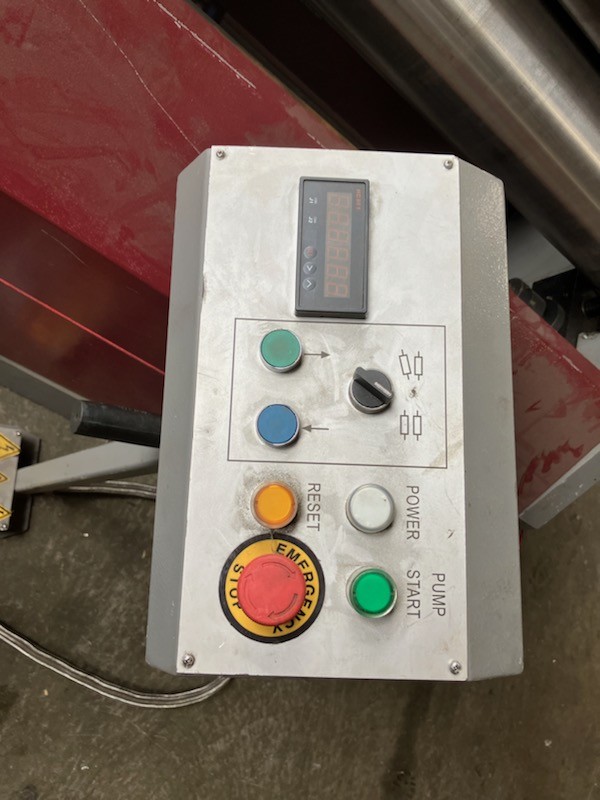

• Safety type foot pedal control
• Overload protection and disconnect switch
• Power source 208V/220V, (Option 460 V , 3 phase)
• One year industrial warranty for parts

Standard Equipment:

• LED indicator for bending roll position
• Safety line all around the machine for emergency stop
• Removable safety foot pedal and tool box
• Cone attachment ( to make cone parts)
• (3) grooves 3/8”, ½”, 5/8” on roll for bending wire
