0,3 – 4 mm thickness / 2050-4200mm length

Standard Features

• Dual drive clamping beam with ball screw spindle system for more clamping power.

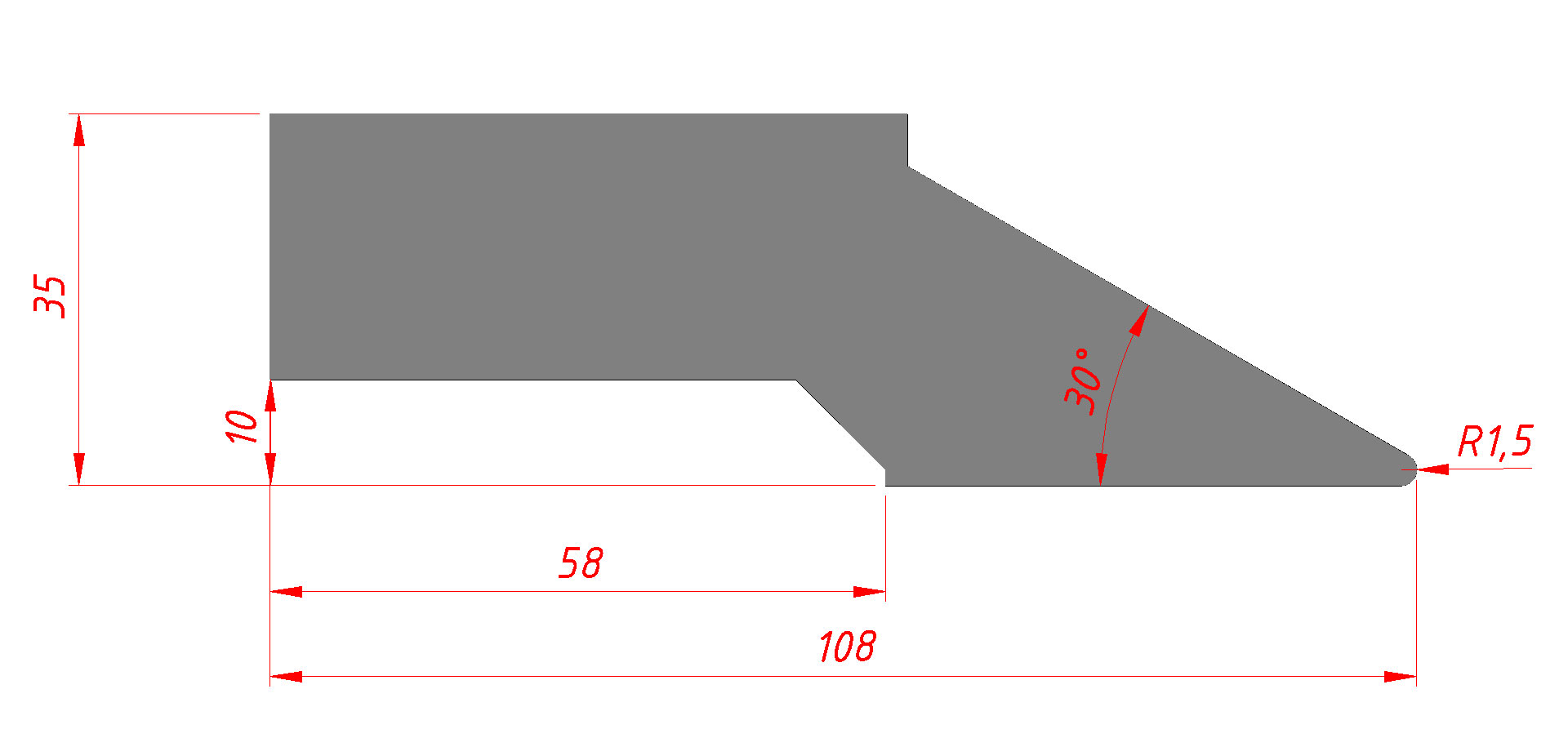

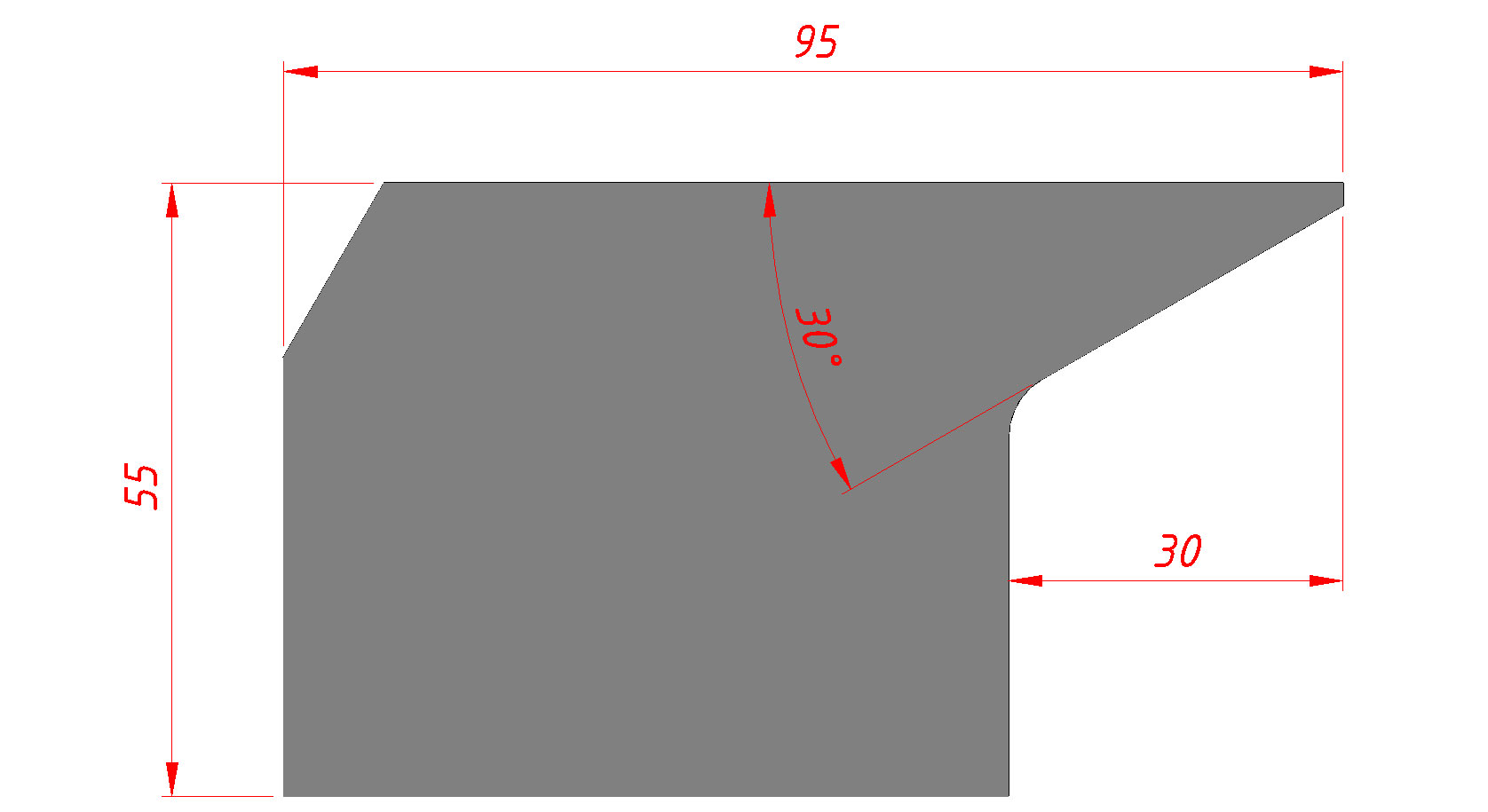

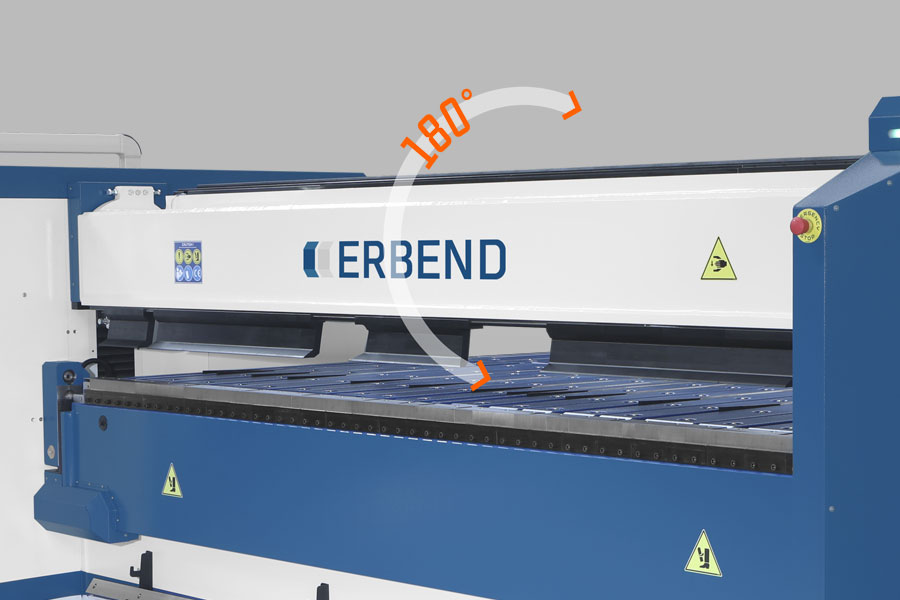

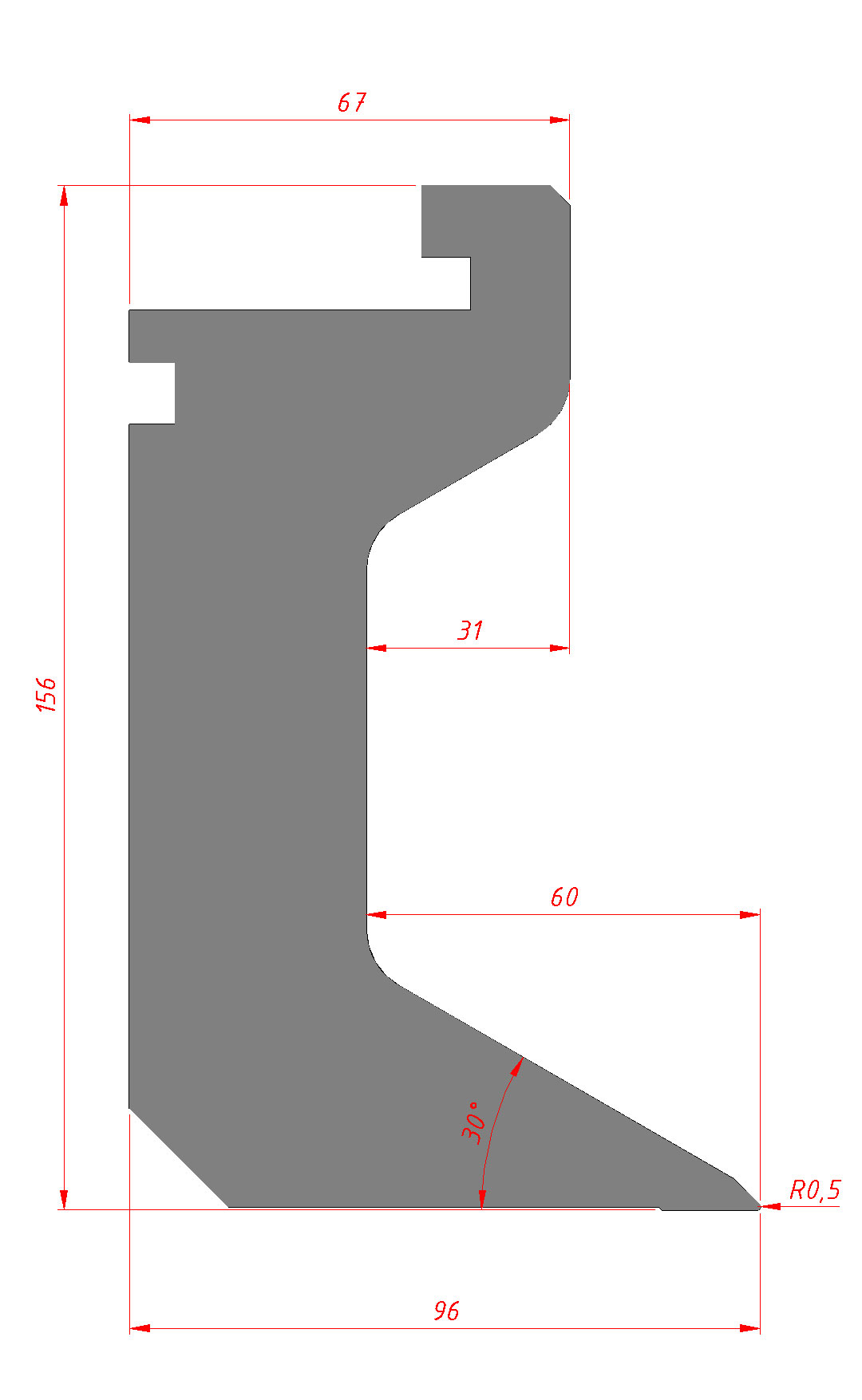

• 250 mm opening height on 180° rotating combi clamping beam with 2 tooling stations as 125 mm high segmented goat foot tools on station 1 and 30° single piece sharp nose tool on station 2.

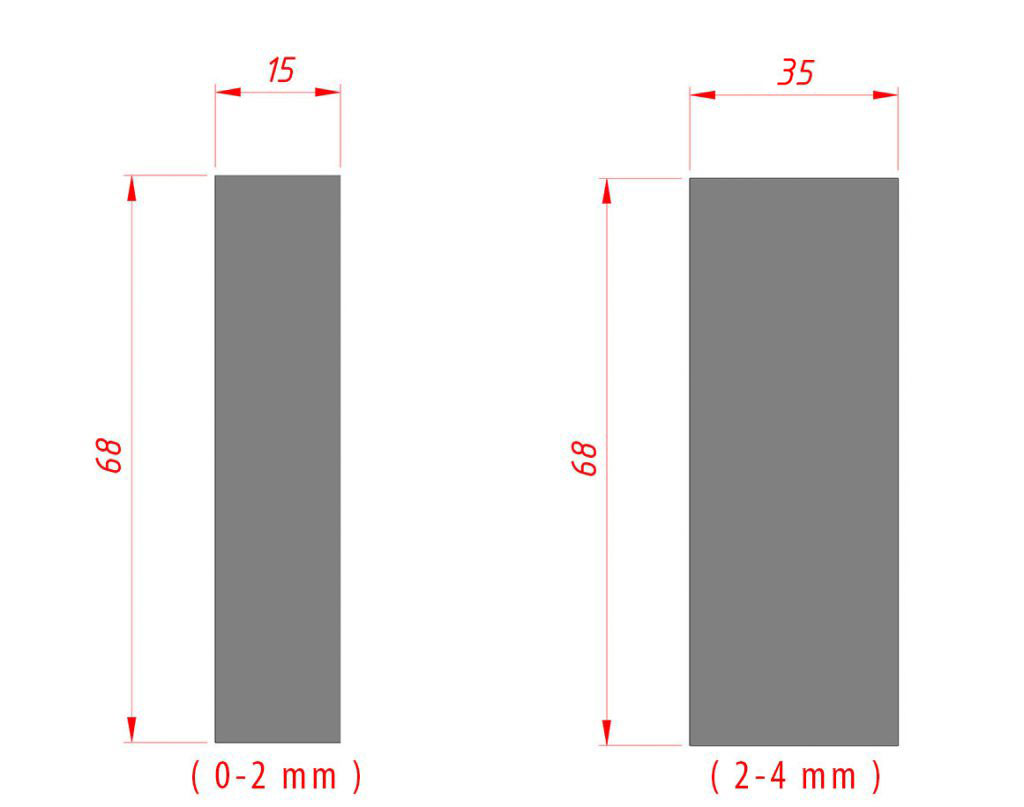

• Solid lower beam with channels and 2 sets of single piece folding tools as 15 and 40 mm wide.
• Manual folding beam adjustment.
• ERFOLD BASIC CNC LBL control software on 15.6 ” touchscreen controller with swivel arm.
• 1500 mm servo back gauge system with pneumatic solid fingers and sheet support table with ball casters.
• Front light barriers.

Optional Features

• 2500 / 3200 / 4200 mm servo backgauge system upgrade with L / T / U shape sheet support table options.
• ERFOLD ADVANCED 2D/3D cnc graphic control software.
• Servo folding beam adjustment.
• Manual crowning system.

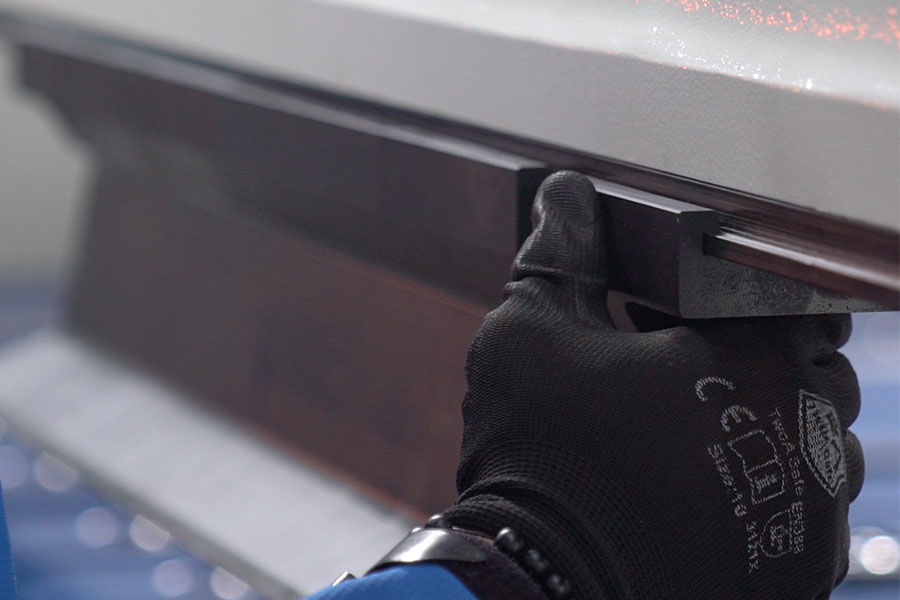

• Pneumatic quick goatfoot tool clamping.
• Segmented bottom or folding tools.
