0,3 – 3 mm thickness / 2550-4200mm length

Standard Features

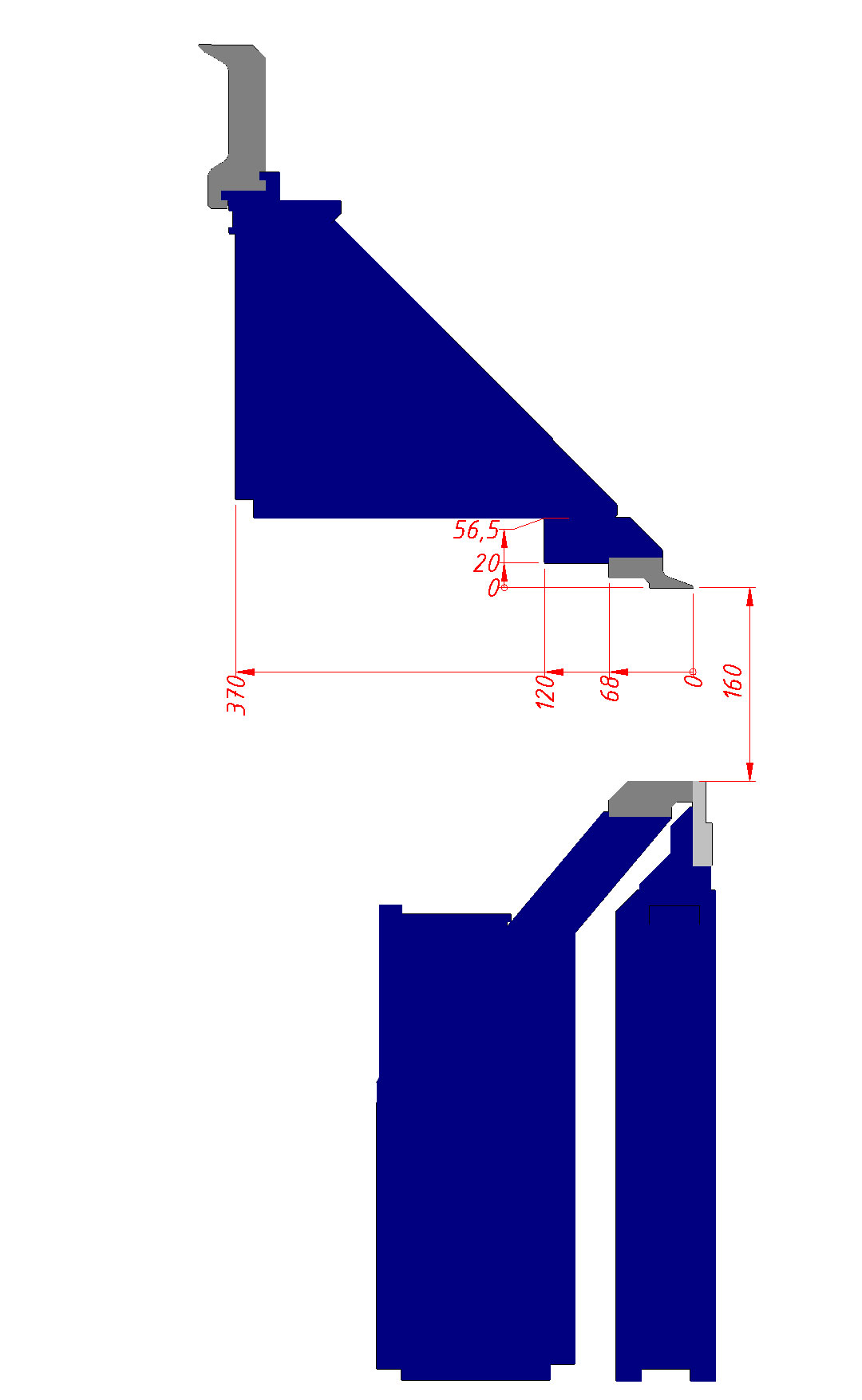

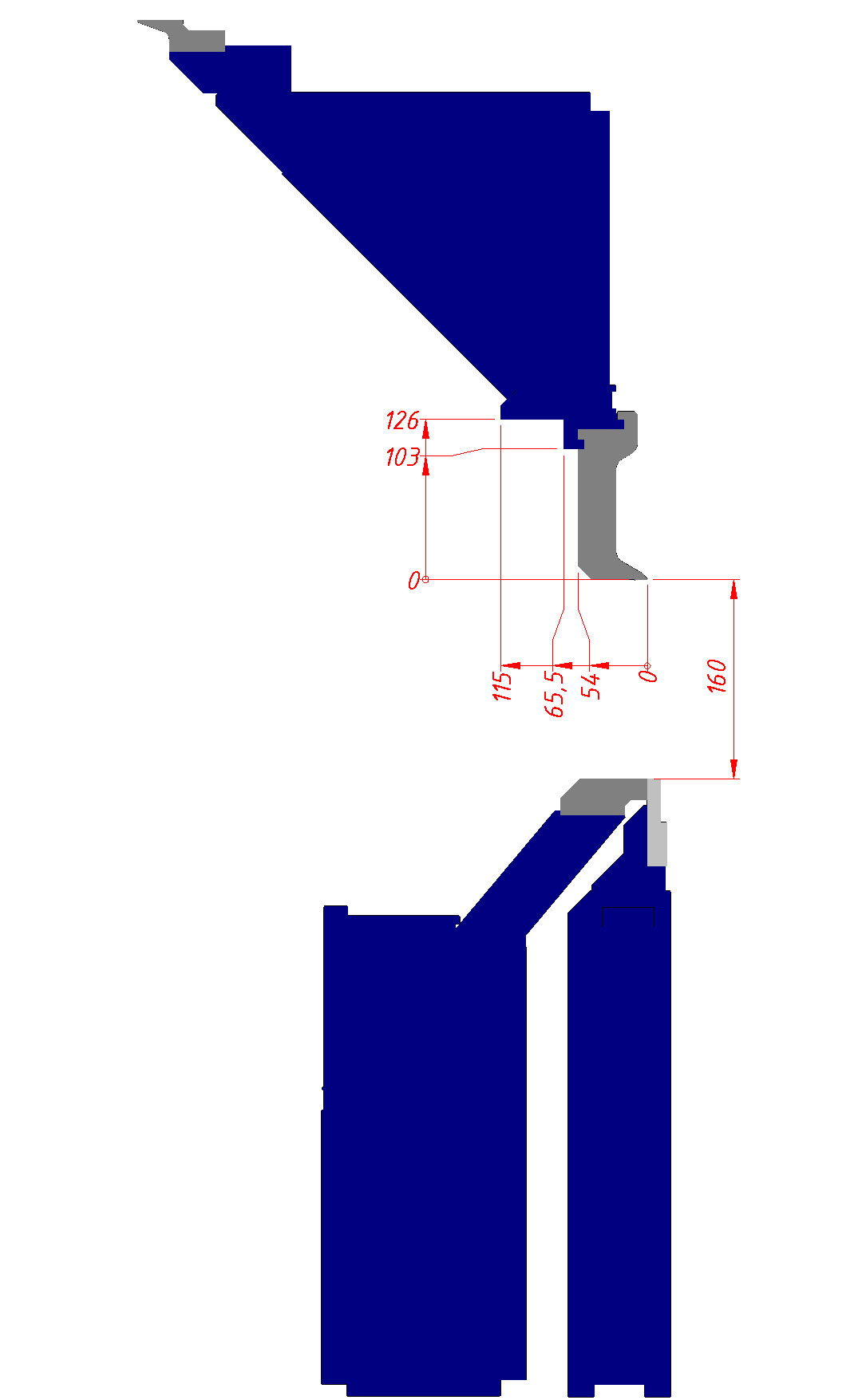

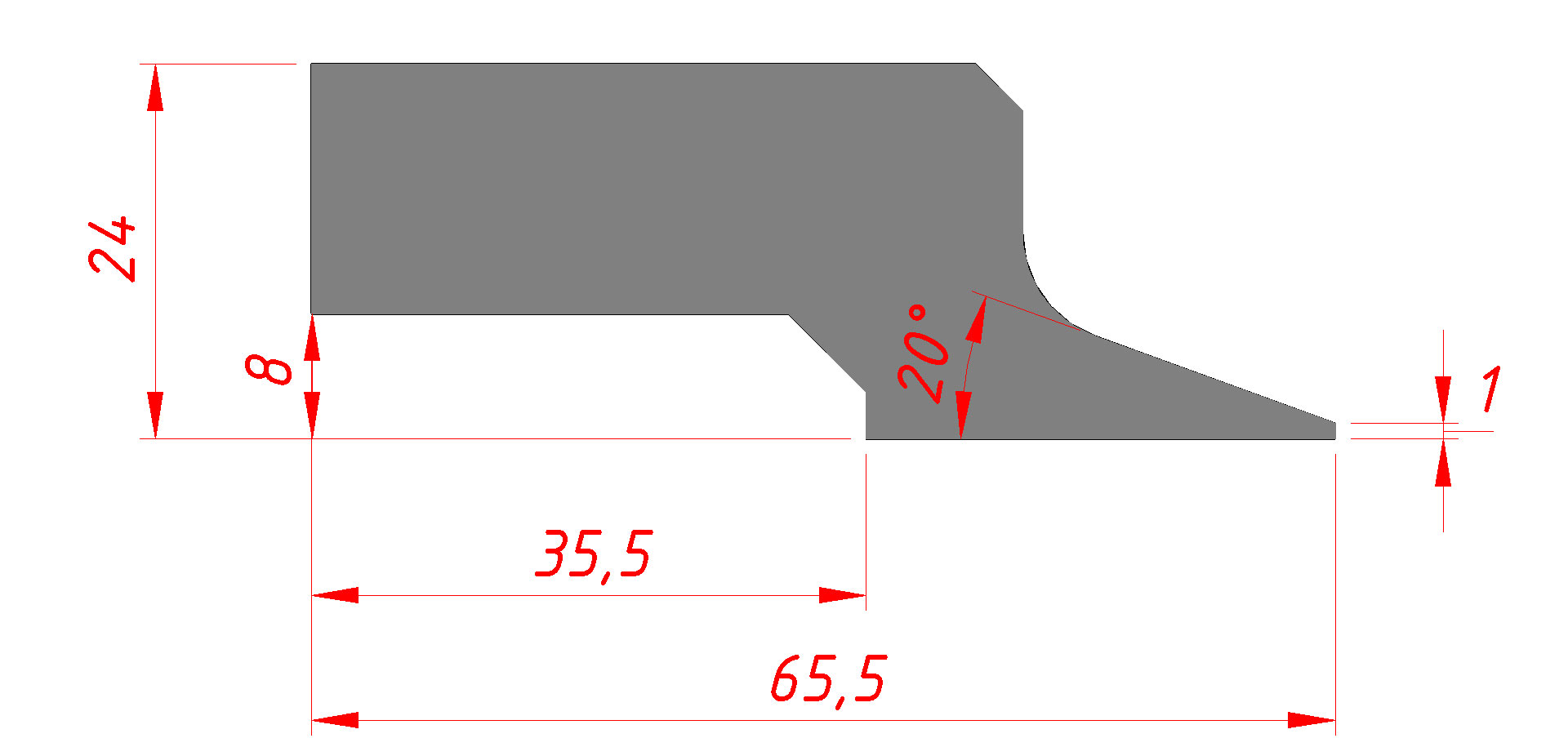

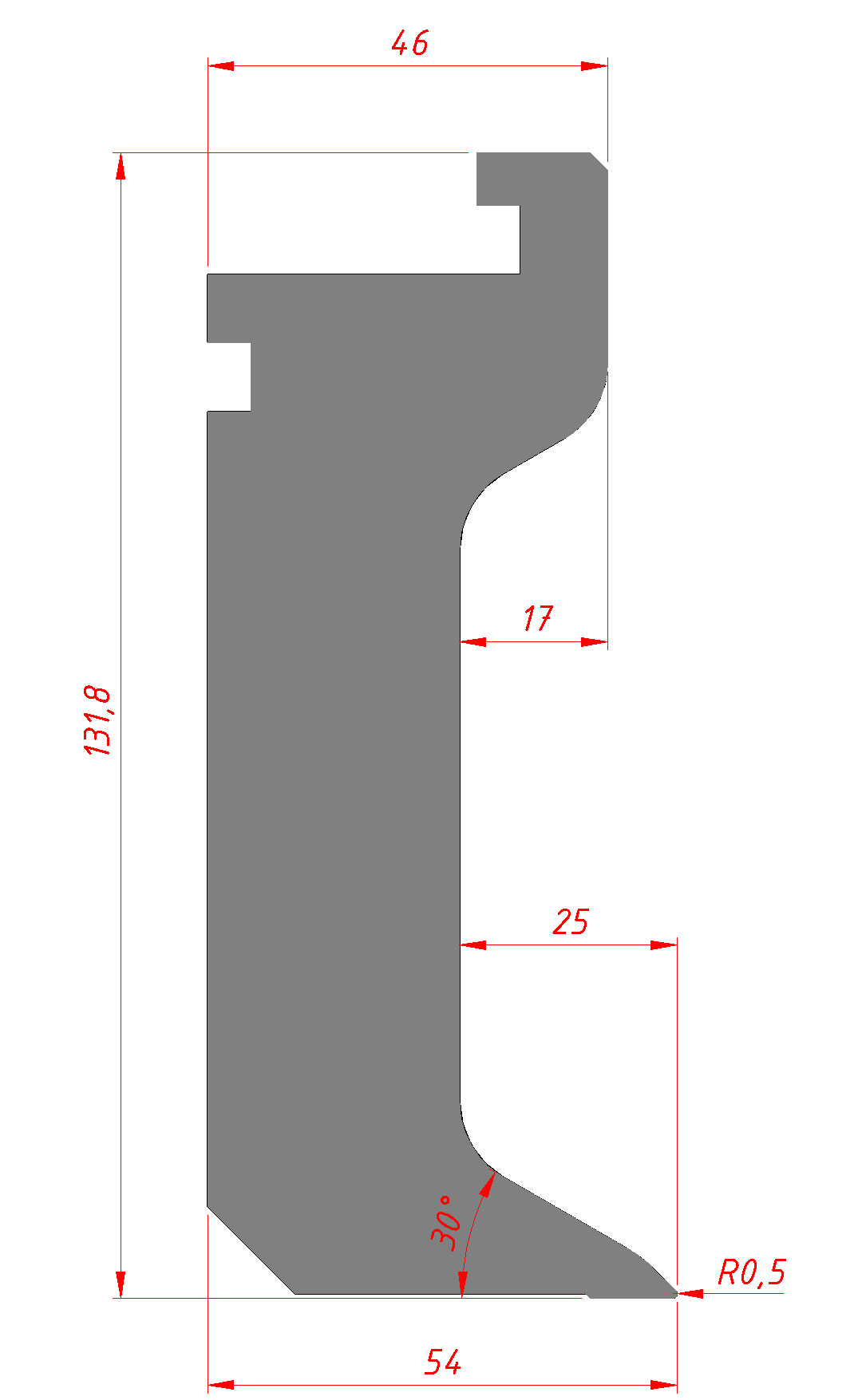

• 200 mm opening height capacity on 180° rotating clamping beam with 2 tool stations as 100 mm high segmented goat foor tool and 20° single piece sharpnose tool.
• Eccentric upper beam power transmission system for rapid clamping/unclamping.
• Manual folding beam adjustment.
• 1000 mm servo backgauge system with feather grooves.

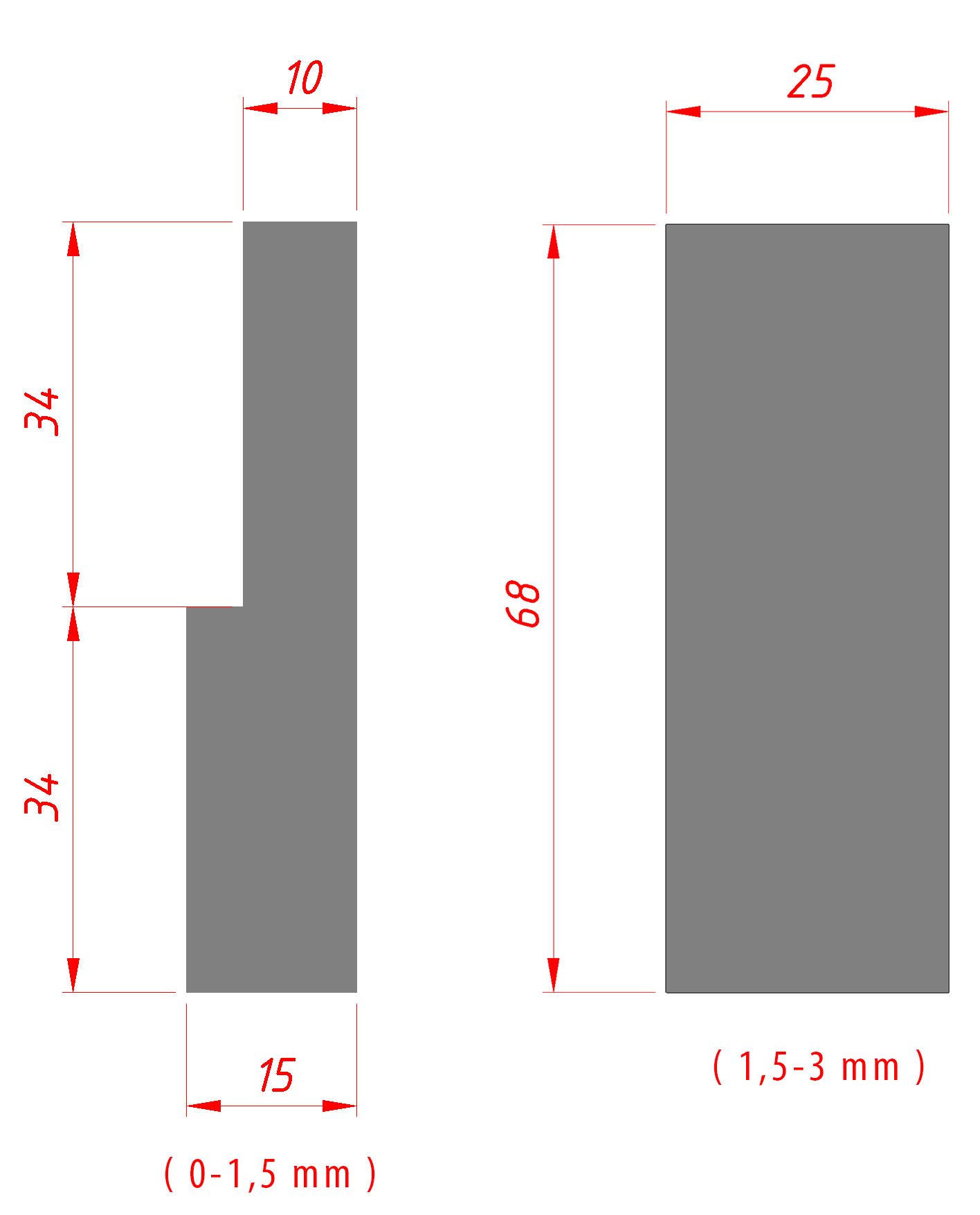

• 10 and 25 mm wide single piece folding tools as 2 sets.
• ERFOLD BASIC CNC LBL Cnc control software on 15.6 ” touchscreen controller with swivel arm.

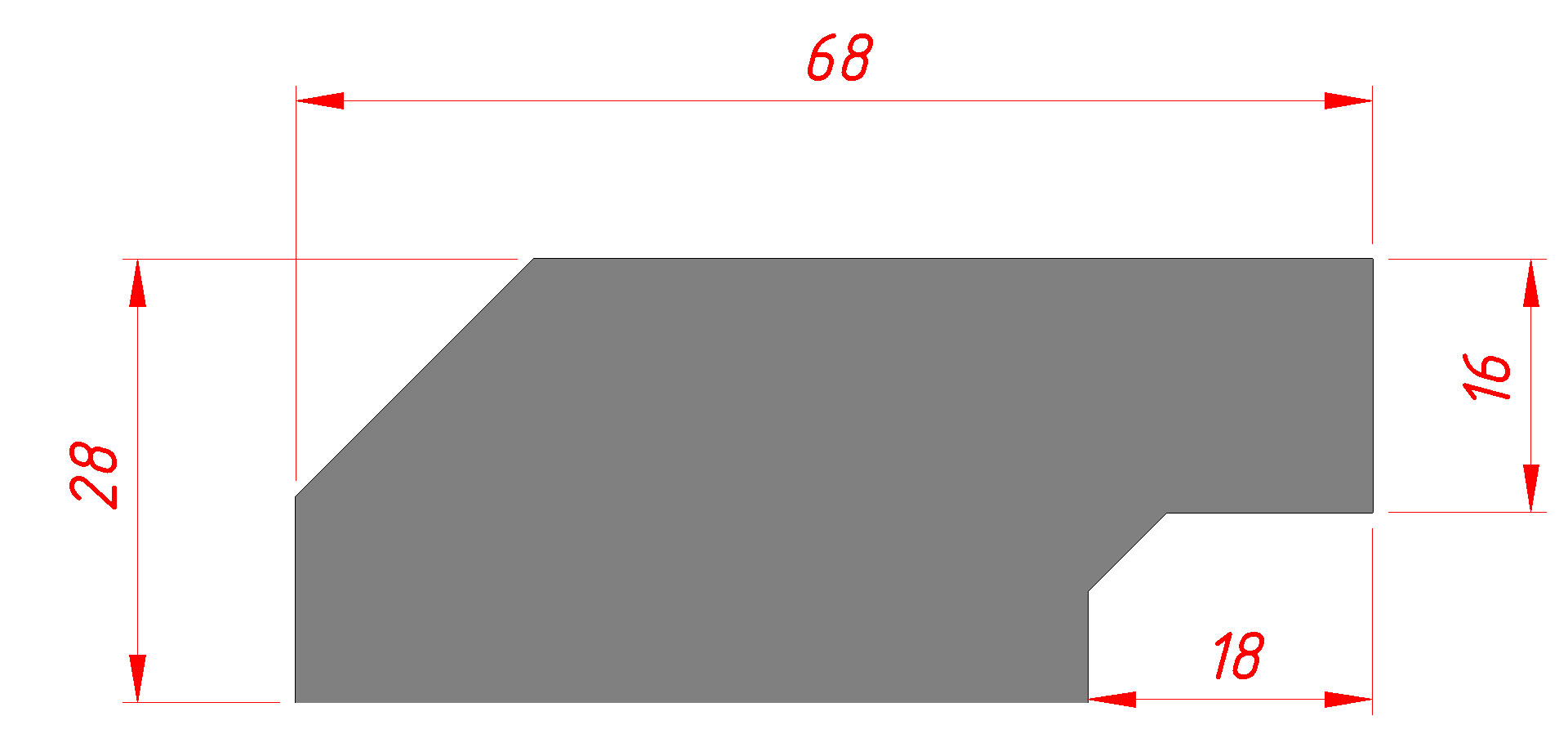

• Solid lower beam tool without channels.
• Front light barriers.

Optional Features

• 1500 mm servo backgauge system with rectangular sheet support table.
• 2500 / 3200 / 4200 mm servo backgauge system upgrade with L / T / U shape sheet support table options.
• ERFOLD ADVANCED 2D/3D CNC Graphic Control Software.
• Servo folding beam height adjustment.
• Omega geometry upgrade on lower and folding beam.
• Manual conical backgauge finger.
• Motorized conical backgauge system.
• Pneumatic goat foot tool quick clamping system.
• Manual crowning system.
