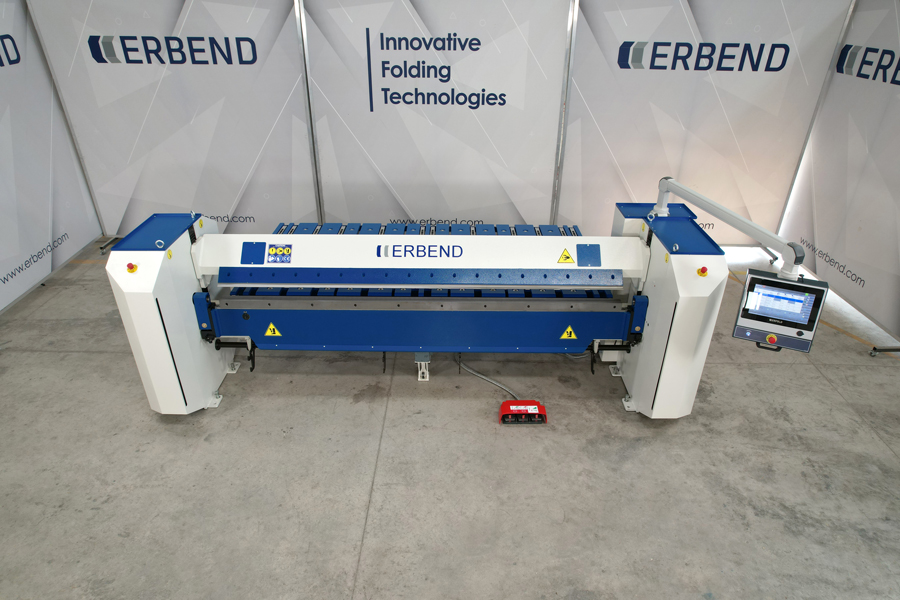

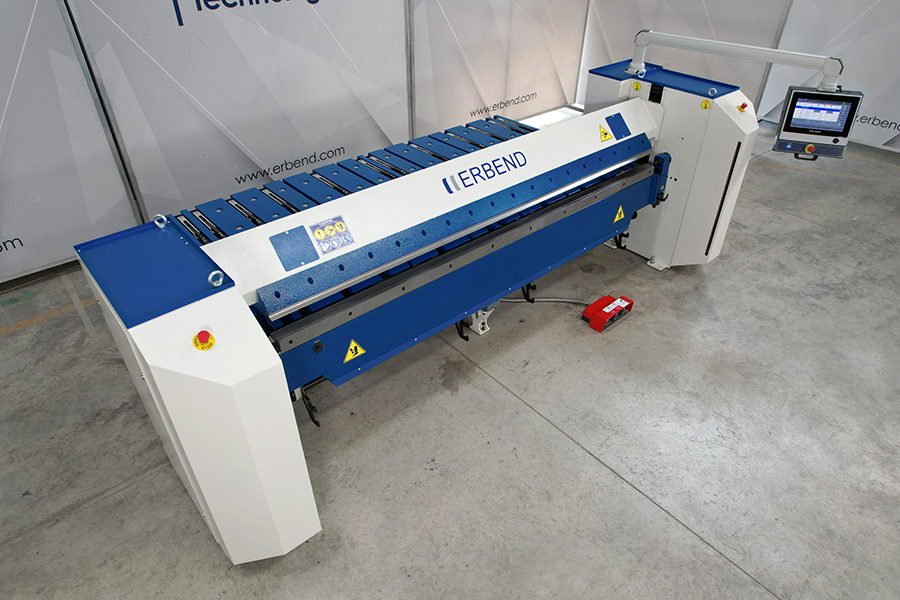

MFG CNC Motorized Sheet Metal Folding Machine (0,3 – 2,5 mm thickness / 2050-3200 mm length)

0,3 – 2,5 mm thickness / 2050-3200 mm length

Standard Features

  • 180 mm opening height capacity on the upper beam.

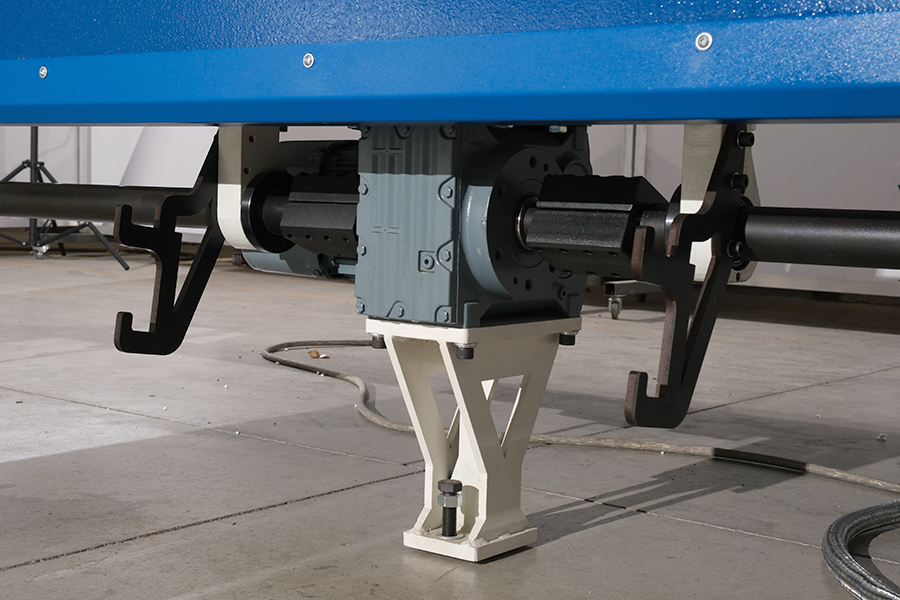

  • Eccentric upper beam power transmission system for rapid clamping/unclamping.

  • 10 and 25 mm wide single piece folding tools as 2 sets.

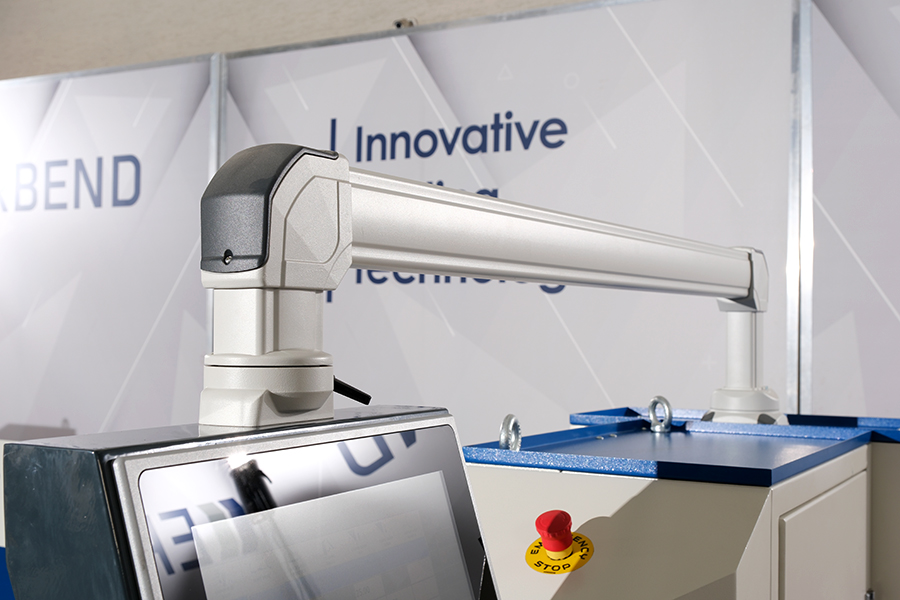

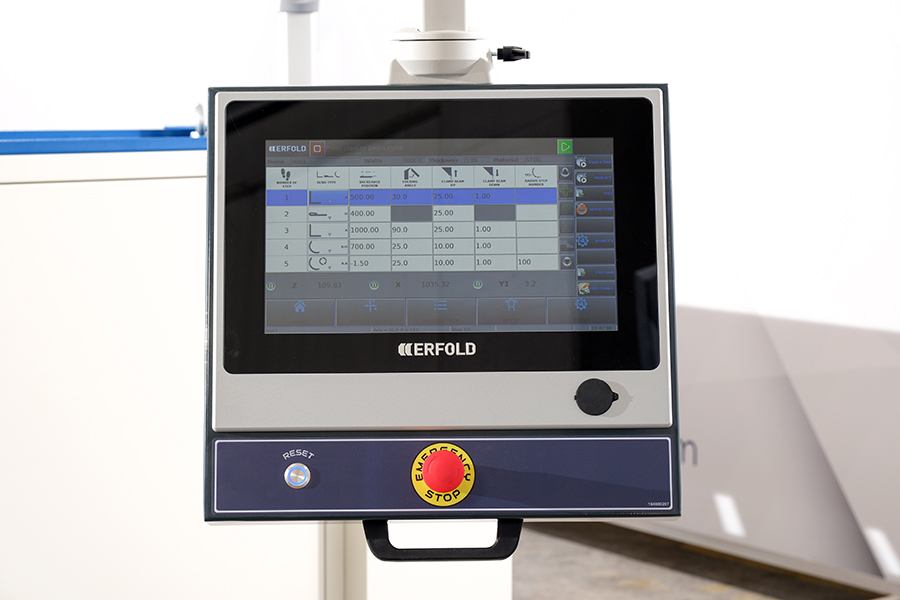

  • ERFOLD BASIC CNC LBL Cnc control software on 15.6” touchscreen controller with swivel arm.

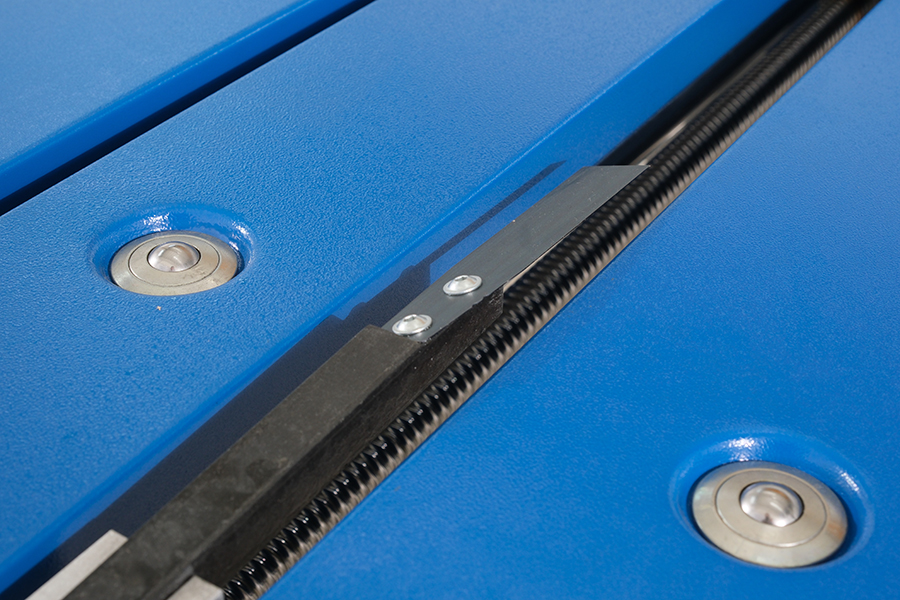

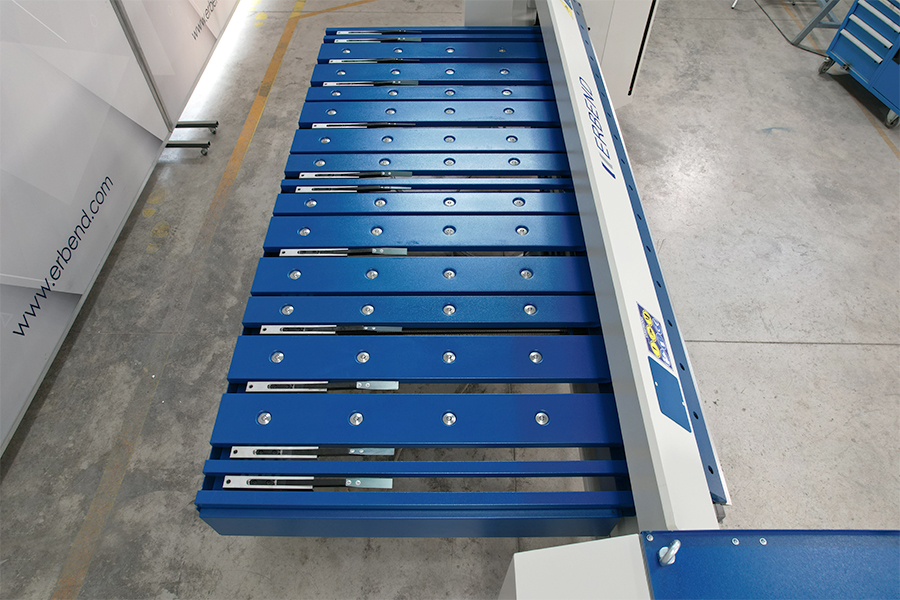

  • 750 mm servo backgauge system with feather grooves.
  • 0-150° folding angle.

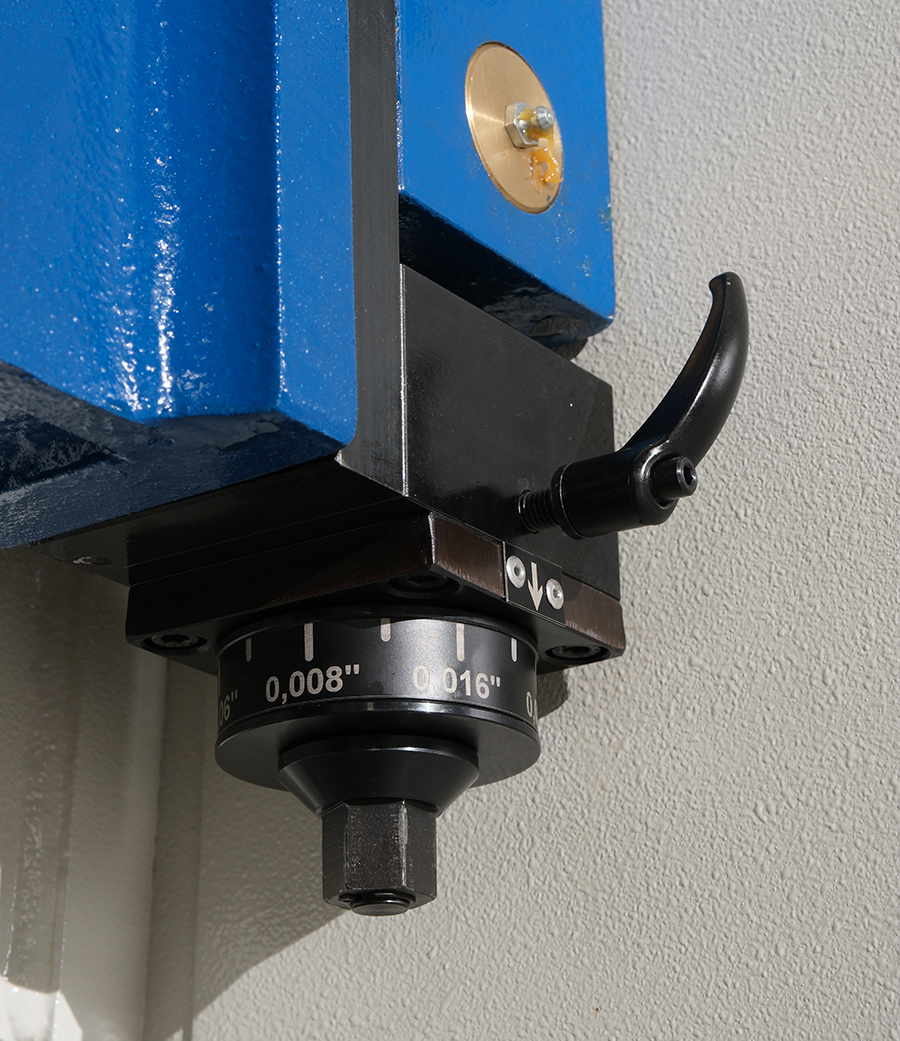

  • Manual folding beam adjustment.
  • Front light barriers.

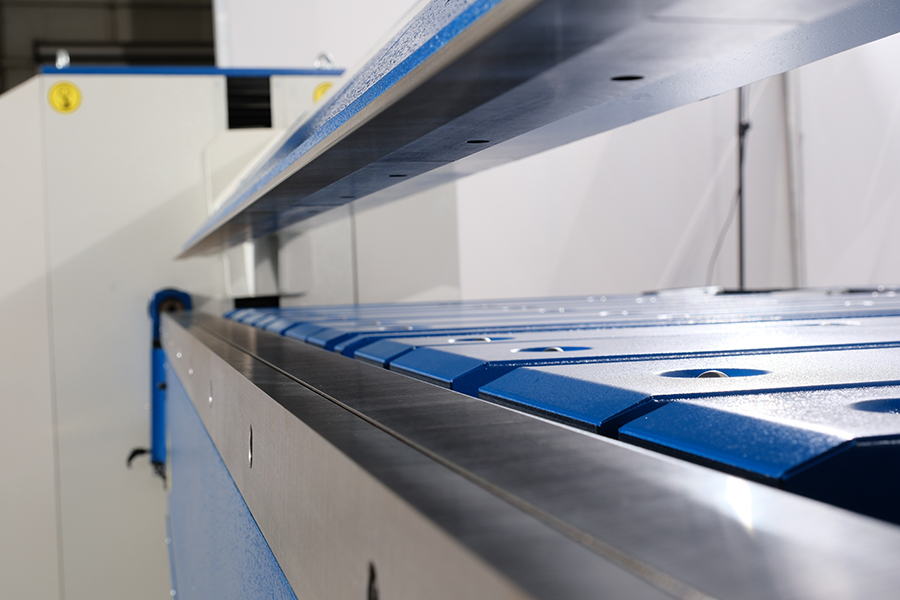

  • Solid lower beam tool without channels.

Optional Features

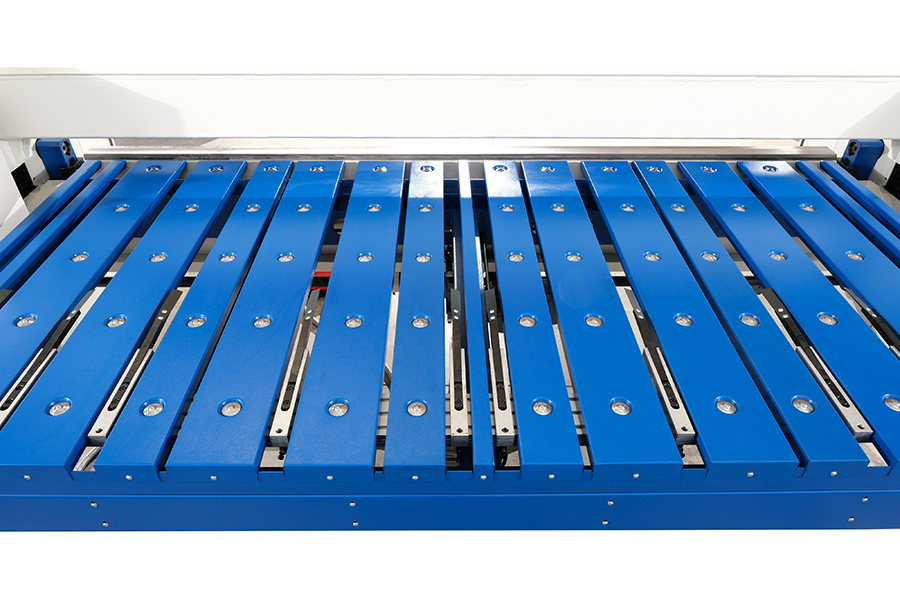

  • 1000 or 1500 mm servo backgauge system with rectangular sheet support table.
  • 60 or 90 mm high segmented goat foot tool set.

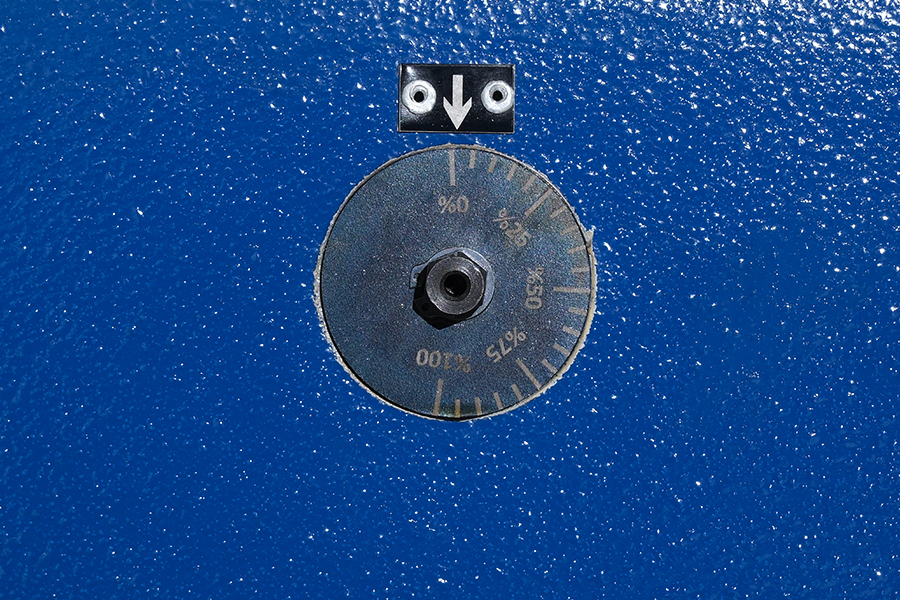

  • Manual crowning system.
  • Servo folding beam adjustment.
  • ERFOLD ADVANCED 2D/3D Cnc Graphic Control Software.
  • Omega geometry upgrade on lower and folding beam.
  • Manual conical backgauge finger.
  • Motorized conical backgauge system.
  • Pneumatic goat foot tool quick clamping system.

Product description

0,3 – 2,5 mm thickness / 2050-3200 mm length

Capacity and Dimensions

Model
Sheet Length
Steel
Stainless
Aluminium
Dimensions
Weight
MFC 2025
2050
2,5
1,5
3,5
3350 / 2100 / 1860
2550
MFC 2520
2550
2
1,2
3
3830 / 2100 / 1860
3000
MFC 3215
3200
1,5
1
2
4450 / 2100 / 1860
3300



Unit of length : mm  / unit of weight : kg

Features

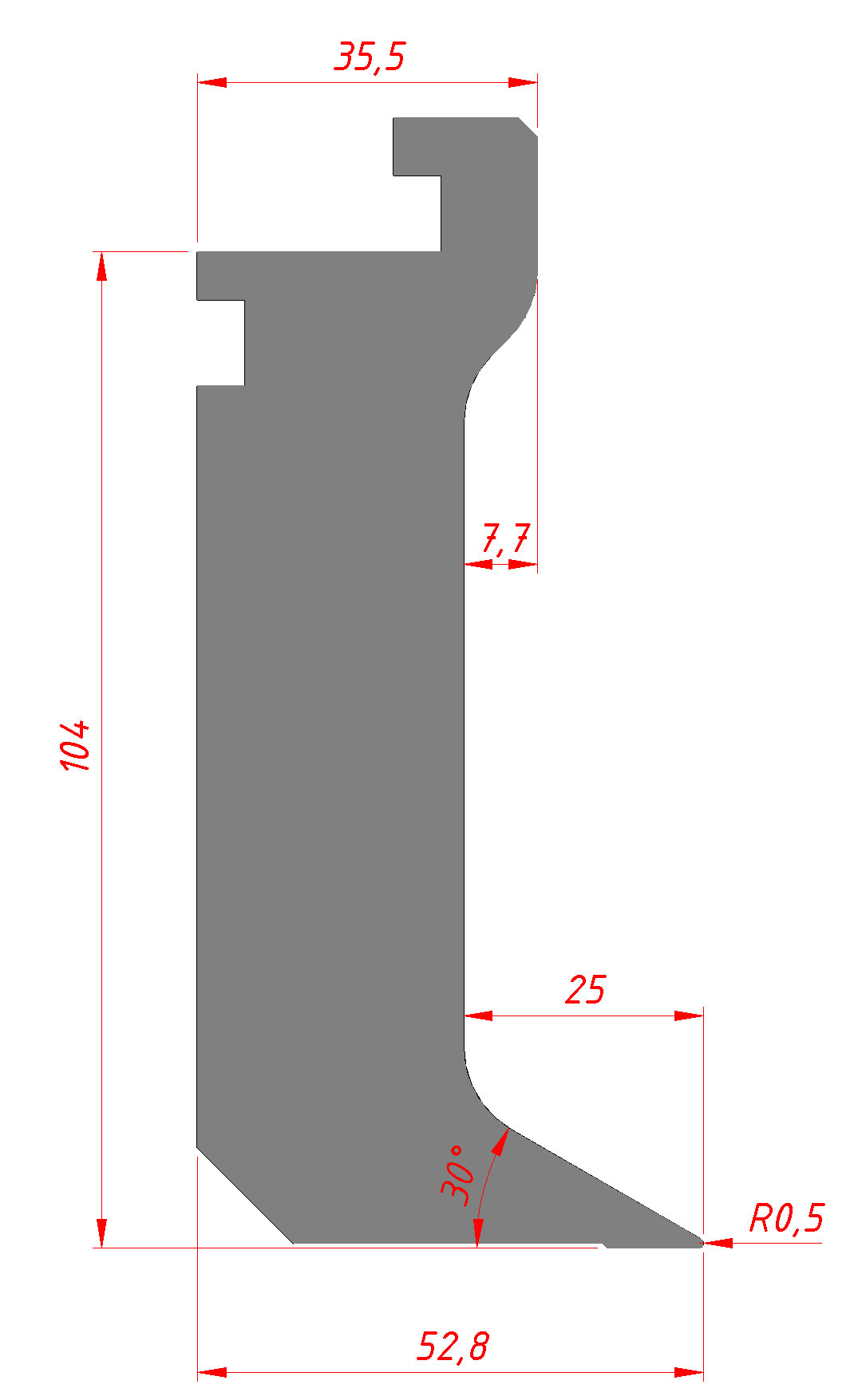

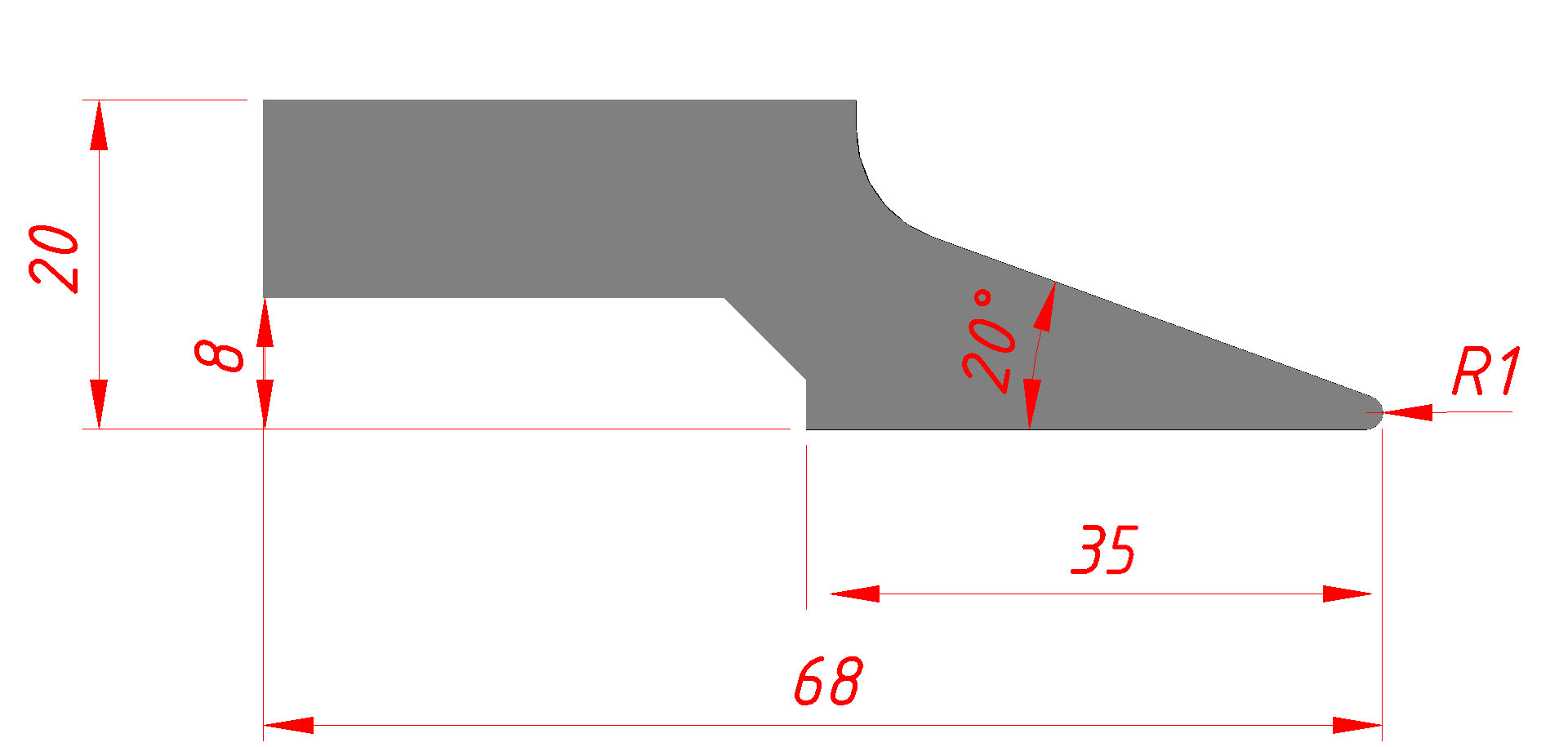

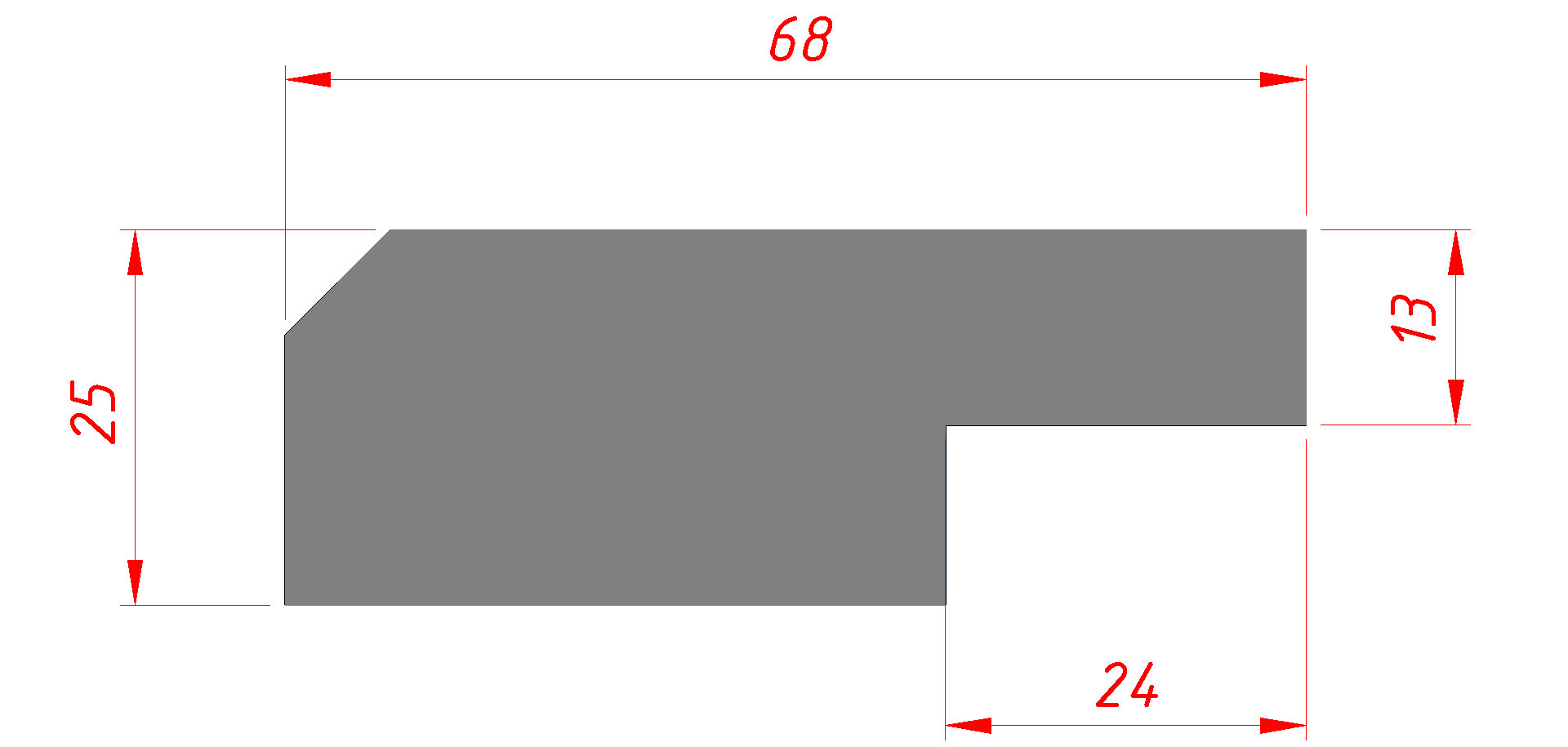

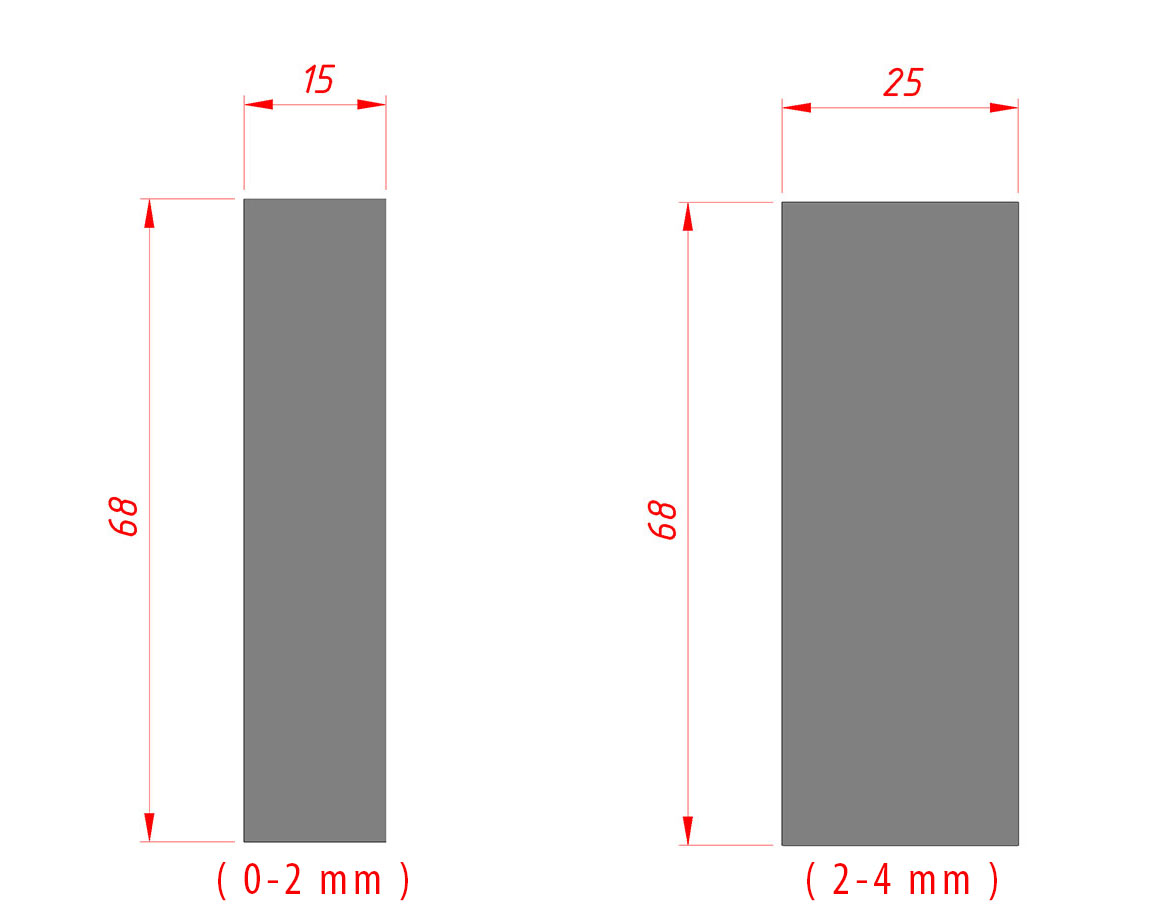

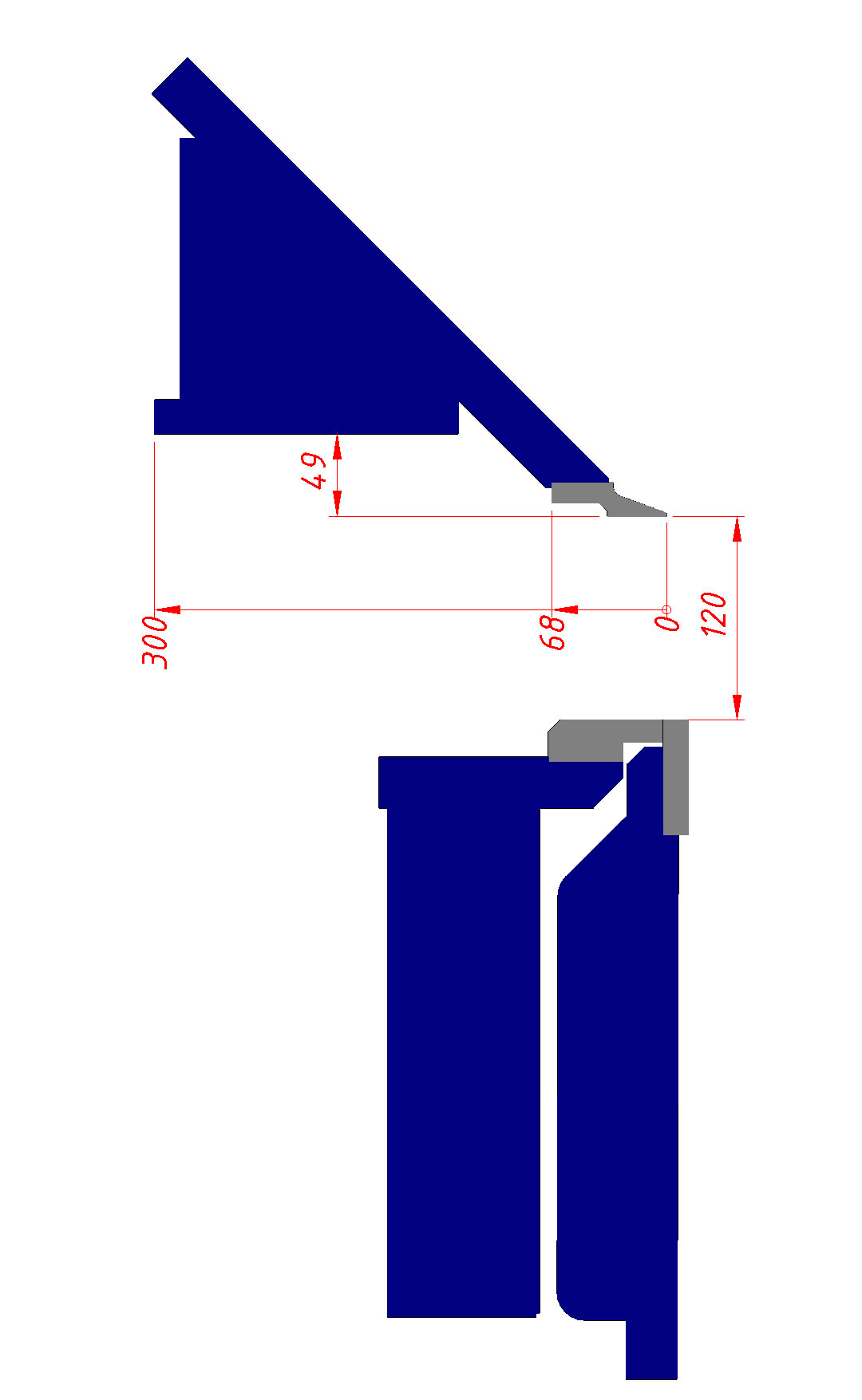

Tool & Beam Geometry
