0,3 – 4 mm thickness / 2050-4200 mm length

Standard Features

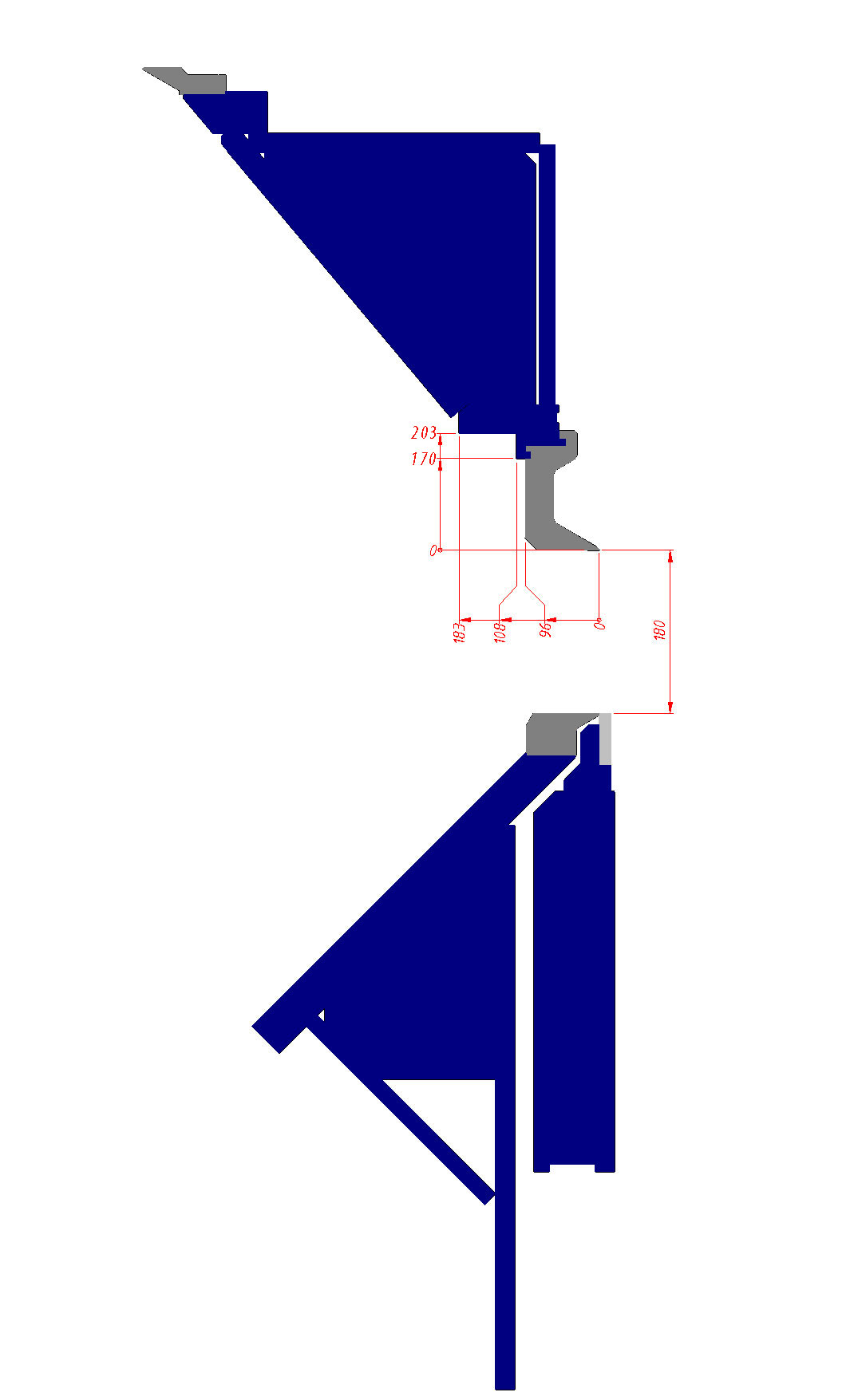

• Clamping beam with 350 mm opening height and 170 mm high, segmented goat foot tools.
• Dual drive clamping beam with ball screw spindle system for more clamping power.
• 1500 mm servo backgauge system with rectangular sheet support table and solid fingers.

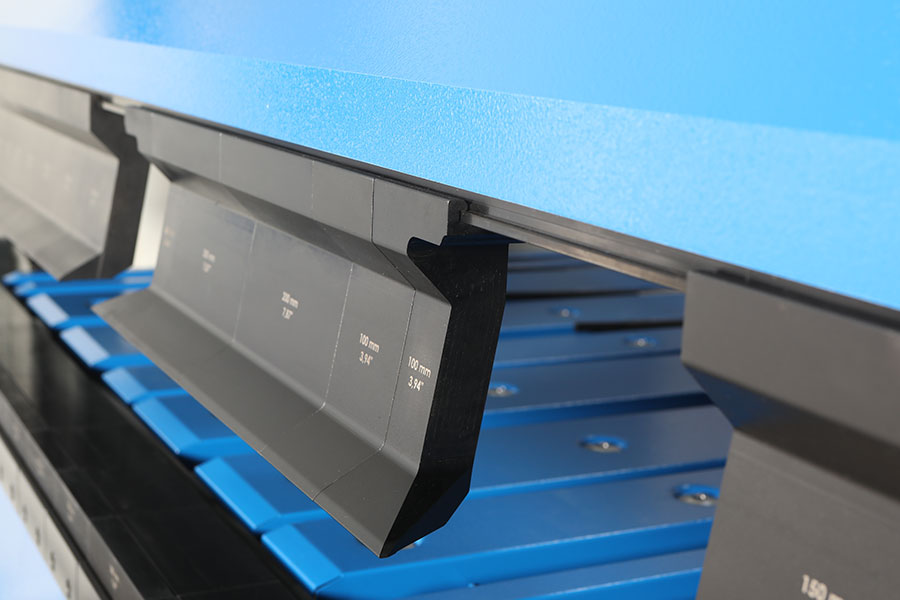

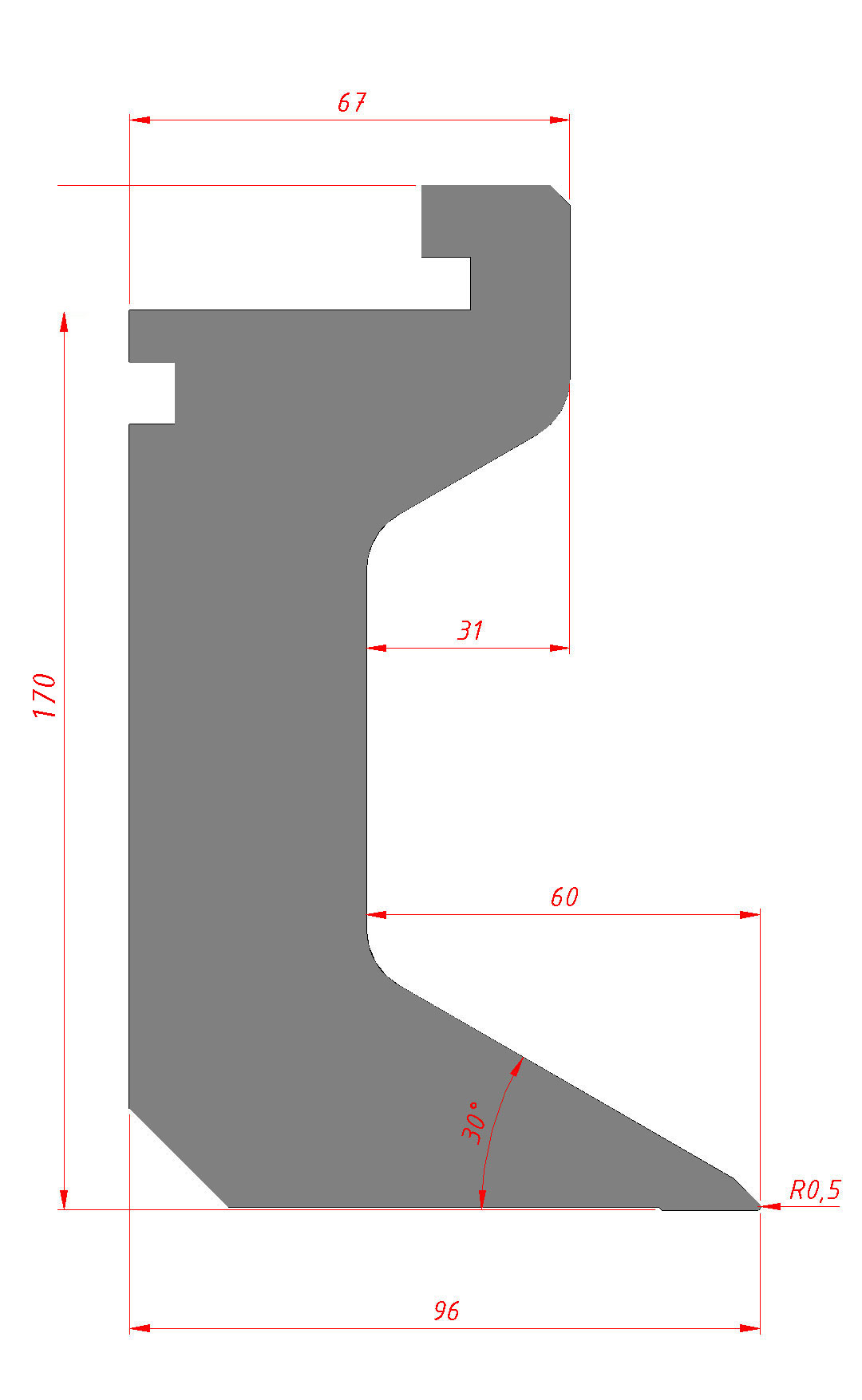

• 170 mm high segmented goat foot tools.

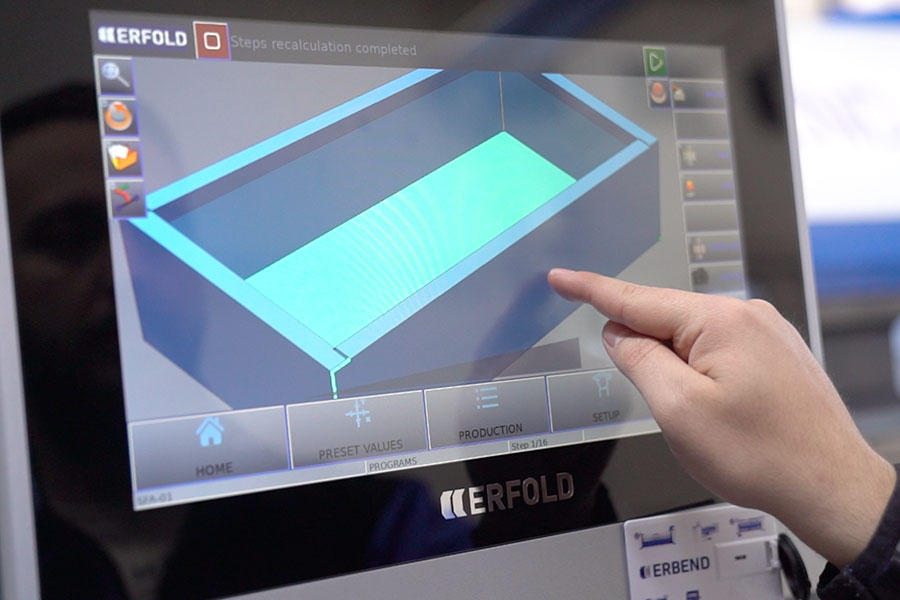

• ERFOLD BASIC CNC LBL control software on 15.6” touchscreen controller with swivel arm.

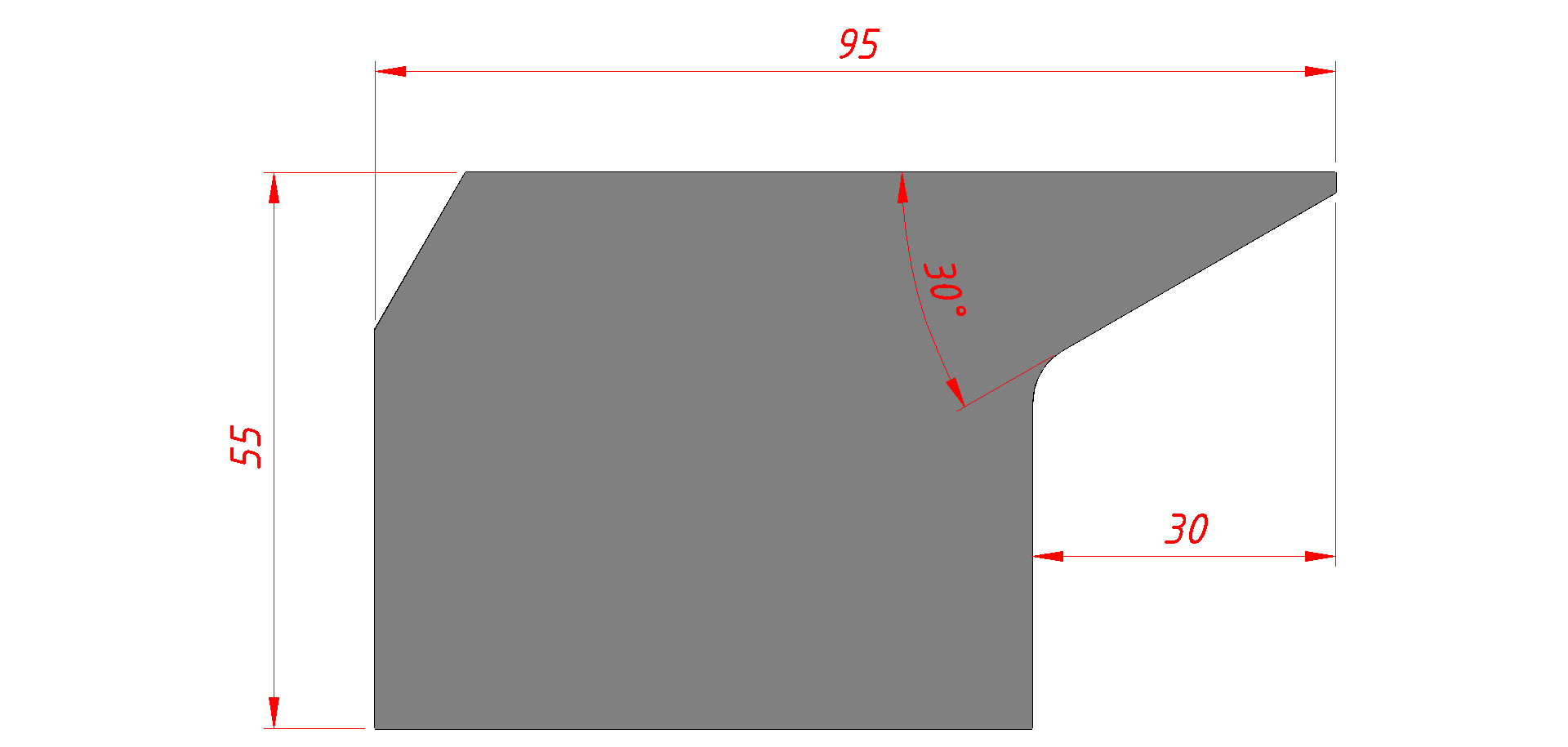

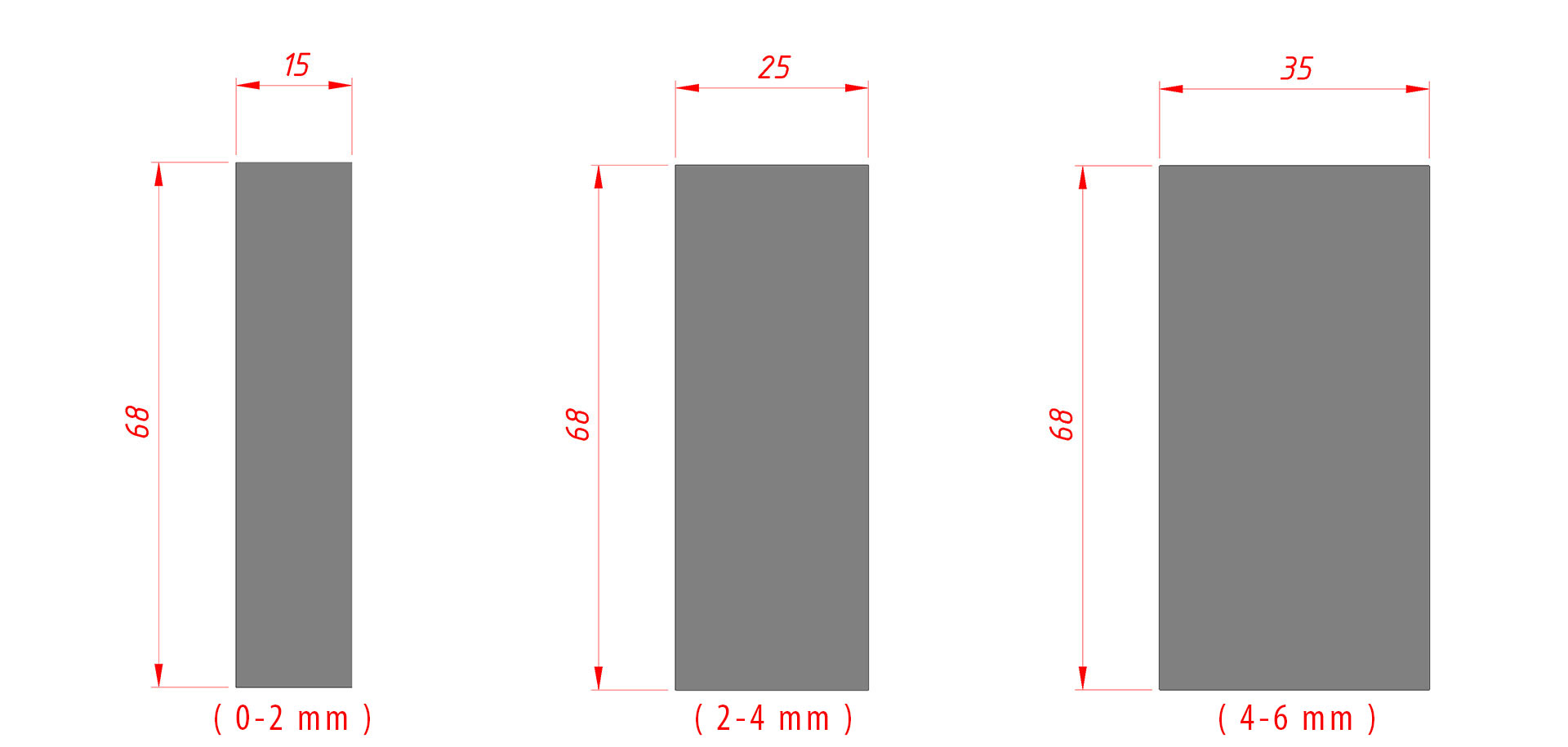

• 15 and 40 mm wide folding beam tools, single piece as 2 sets.
• Manual folding beam adjustment.
• Front light barriers.

Optional Features

• 400 mm clamping beam opening and 200 mm high tools upgrade.
• 2500 / 3200 / 4200 mm servo backgauge system upgrade with L / T / U shape sheet support table options.
• ERFOLD ADVANCED 2D/3D CNC Graphic Control Software.
• Motorized folding beam adjustment.
• Pneumatic goat foot quick clamping.
• Manual crowning system.
• Feather grooves with solid lower beam tool without channels.
• Segmented bottom or folding beam tools.
