Iowa Precision Fabriduct Coil Line — Complete HVAC Duct Line

Complete Iowa Precision Fabriduct HVAC duct coil line — right-hand U configuration, 5 cradles, one owner, super nice running line. 5 ft x 16 ga Ductomatic front end, Lockformer Mach-4 Duplex, full wrap brake. Watch the video of it running under power, right on this page. Call or email for price.

Product description

YEAR-END SPECIAL — a complete duct line, running, one owner, and ready to move. Tear-down and loading included. Call for price.

A Complete Duct Line, Running Under Power

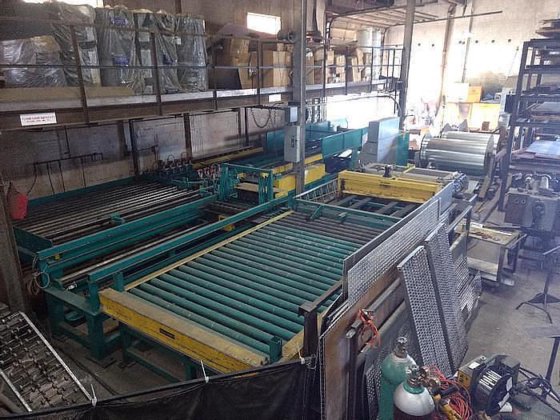

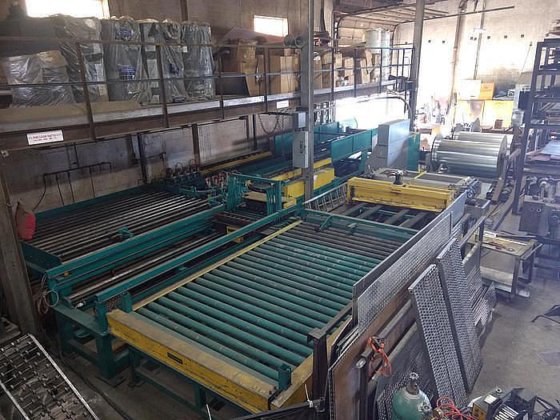

This is a complete Iowa Precision Fabriduct coil line in a right-hand U (RH-U) configuration with 5 coil cradles — one owner, and a super nice running line. The video above shows the complete line running under power. From coil stock to finished duct sections in one pass: the Ductomatic front end levels, beads, and notches; the Lockformer Mach-4 Duplex forms Pittsburgh and snaplock seams; the transfer and cleat systems handle TDC work; and the full wrap brake finishes the section.

The Line — Station by Station

  • 5 coil cradles / decoilers — right-hand U configuration; stage multiple gauges and widths and switch runs without re-threading a single station.
  • Center console with operating software — PC-based control directs the line’s functions and blank lengths.

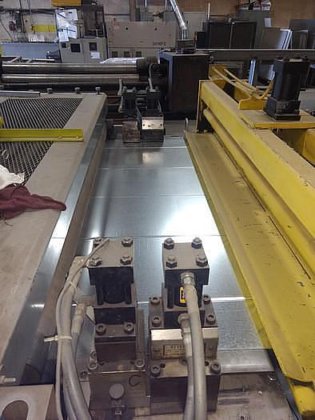

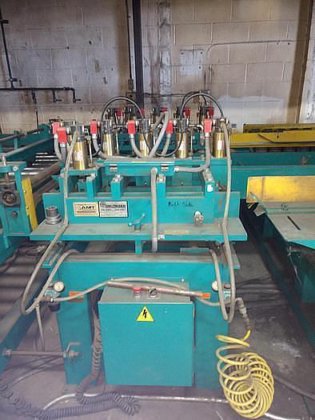

  • Ductomatic front end (approx. 1997) — 5 ft x 16 ga — leveling rolls and pinch rolls remove coil set, beading rolls stiffen the blank, and notching heads are set up for slip drive & TDC work.

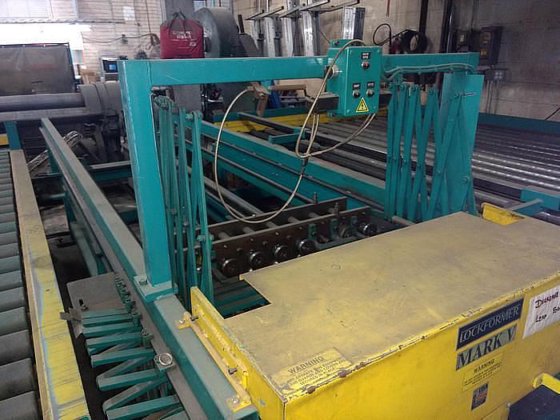

  • Exit conveyor to Lockformer Mach-4 Duplex (approx. 2003) — Pittsburgh & snaplock forming.

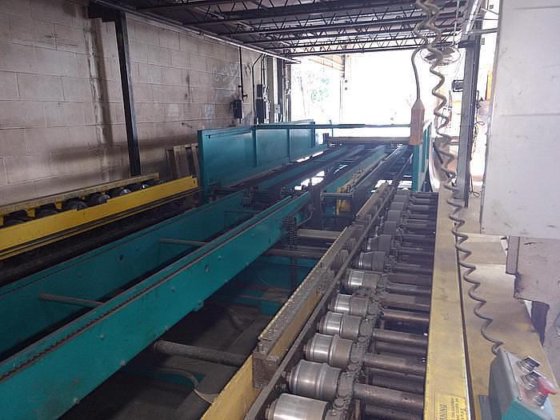

  • Thru transfer with duplex drive cleat edgeforming — TDC-Duplex.
  • Full wrap brake — closes out full-wrap duct sections.

Specifications

Configuration Right-hand U (RH-U), 5 cradles
Capacity 5 ft x 16 ga
Front end Iowa Precision Ductomatic, approx. 1997
Seam forming Lockformer Mach-4 Duplex, approx. 2003 — Pittsburgh & snaplock
Footprint Approx. 45 ft x 21 ft (per the factory layout drawing, included)
Ownership One owner; super nice running line

Factory specifications for the Ductomatic front end (manufacturer’s brochure): processing speed up to 75 ft/min; part lengths to 120 in.; length tolerances ±0.020 in.; beading on 12 in. centers; PC-based controls; no compressed air required at the front end.

What’s Included & Terms

  • Tear-down and loading — included.
  • All original manuals, electrical schematics, and the factory line layout — included.
  • Start-up and training available.
  • Financing available — ask us about Beacon Hill Funding and Stearns Bank.
  • Availability: 1–2 weeks from order acceptance. F.O.B. Massachusetts.
  • Buying for year-end? Used equipment placed in service by December 31, 2026 may qualify for Section 179 — talk to your tax advisor.

CALL FOR PRICE & DETAILS: Shop 508-581-9922 (Arthur ext. 101, Tony ext. 102, Ron ext. 103) · Call or text Arthur at 508-365-8395 · Email aclark@northernmachinerysales.net. Northern Machinery Sales Inc., 12 John Road, Unit F, Sutton, MA 01590.
