0,3 – 5 mm thickness / 2050-4200mm length

Standard Features

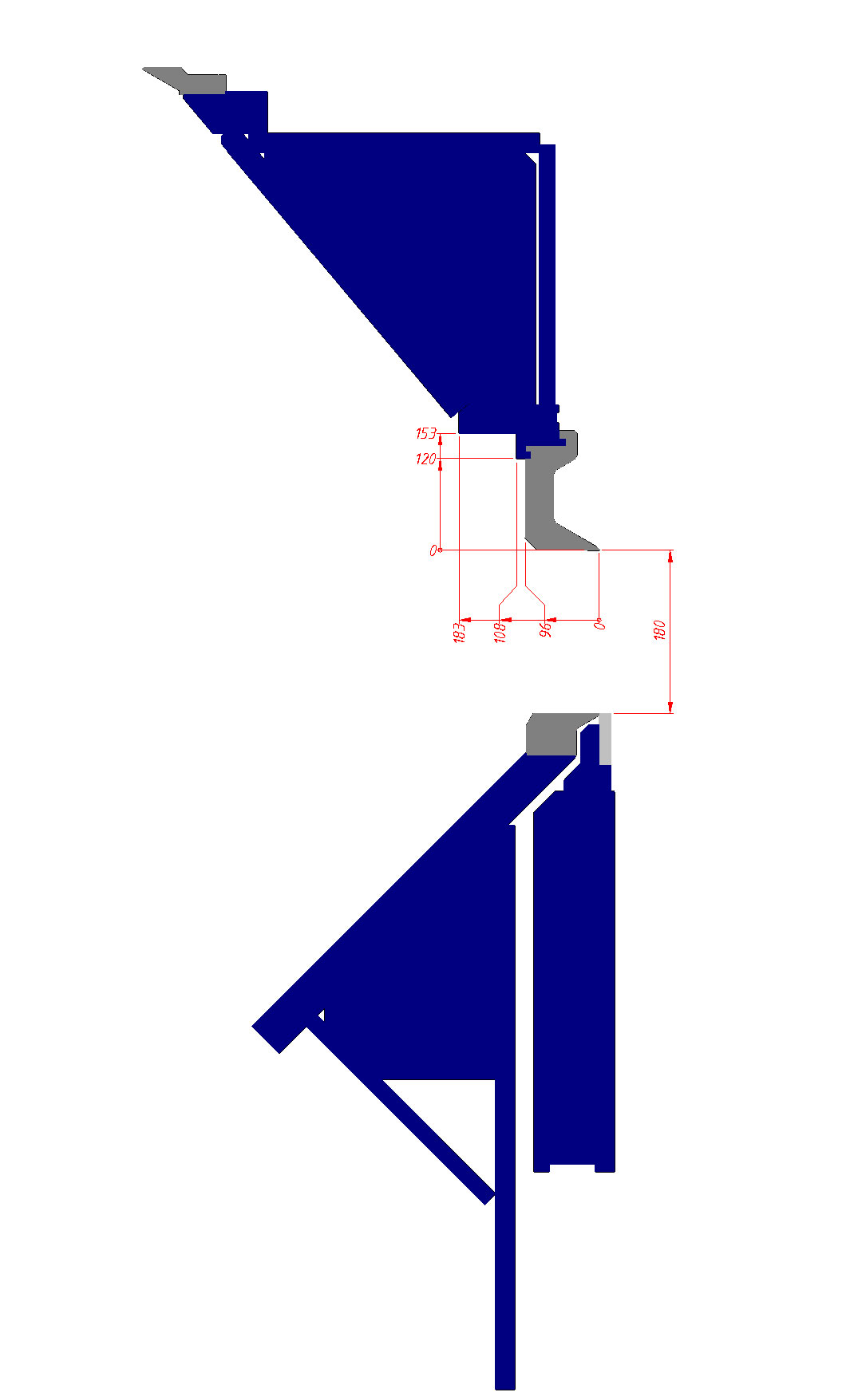

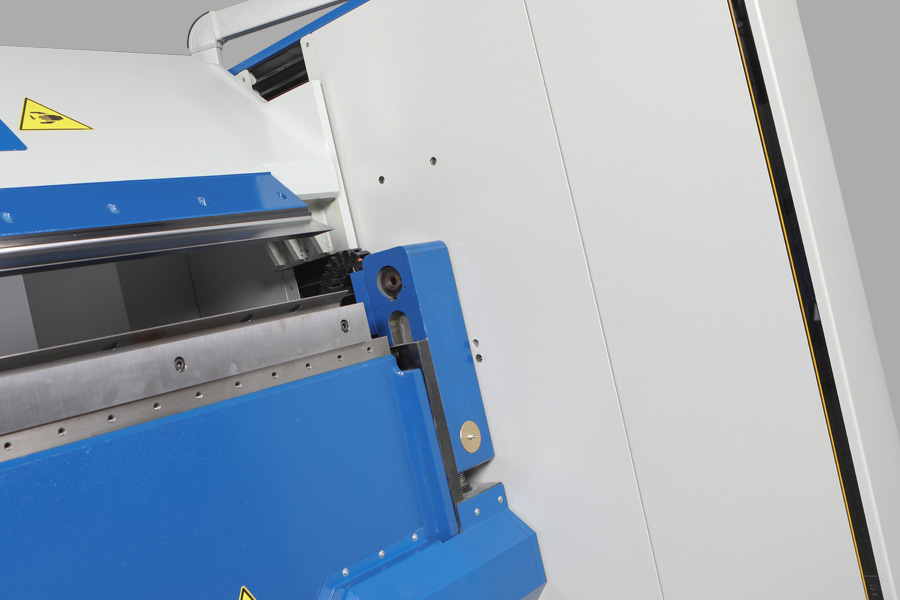

• Clamping beam with 180 mm opening height and dual servo driven ballscrew spindle system.

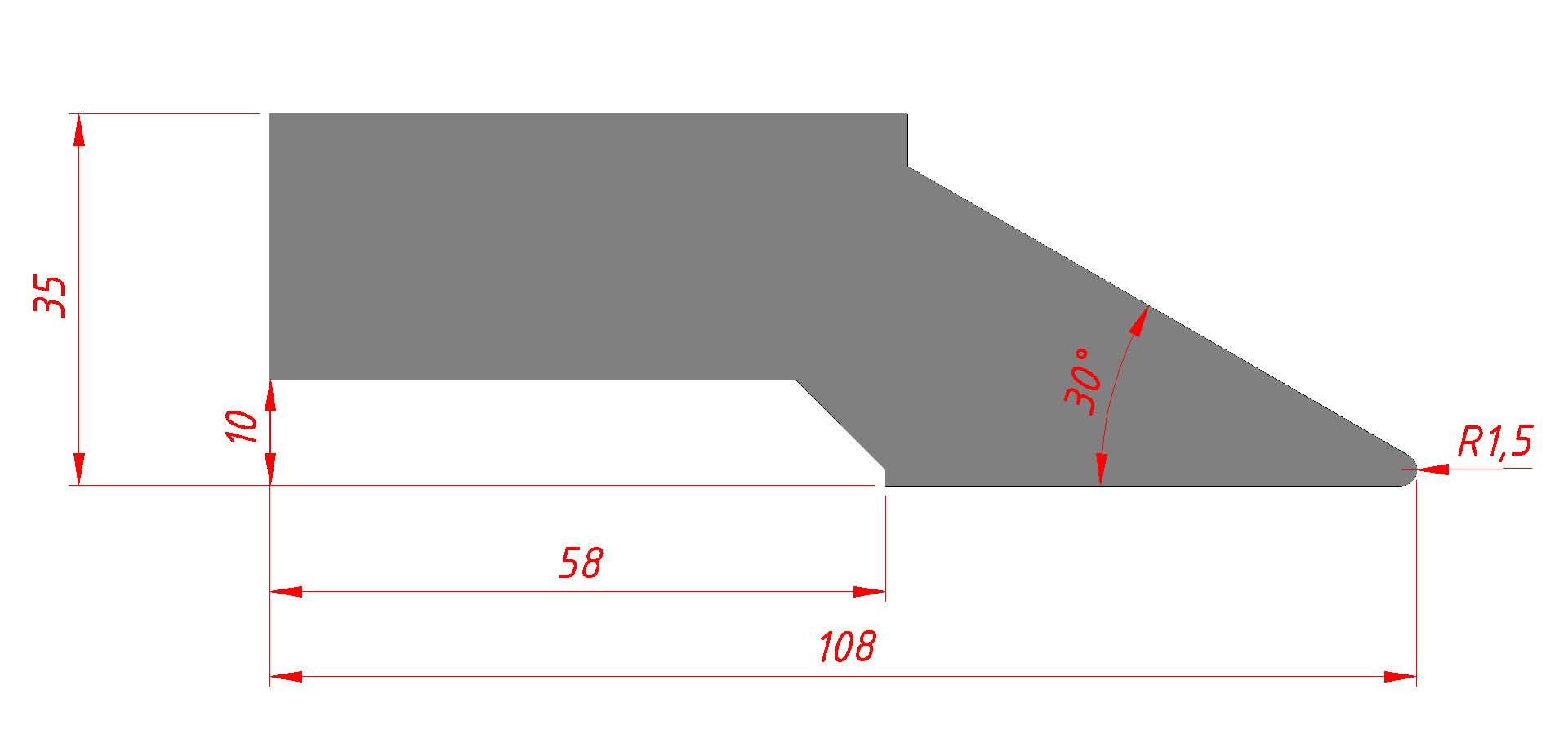

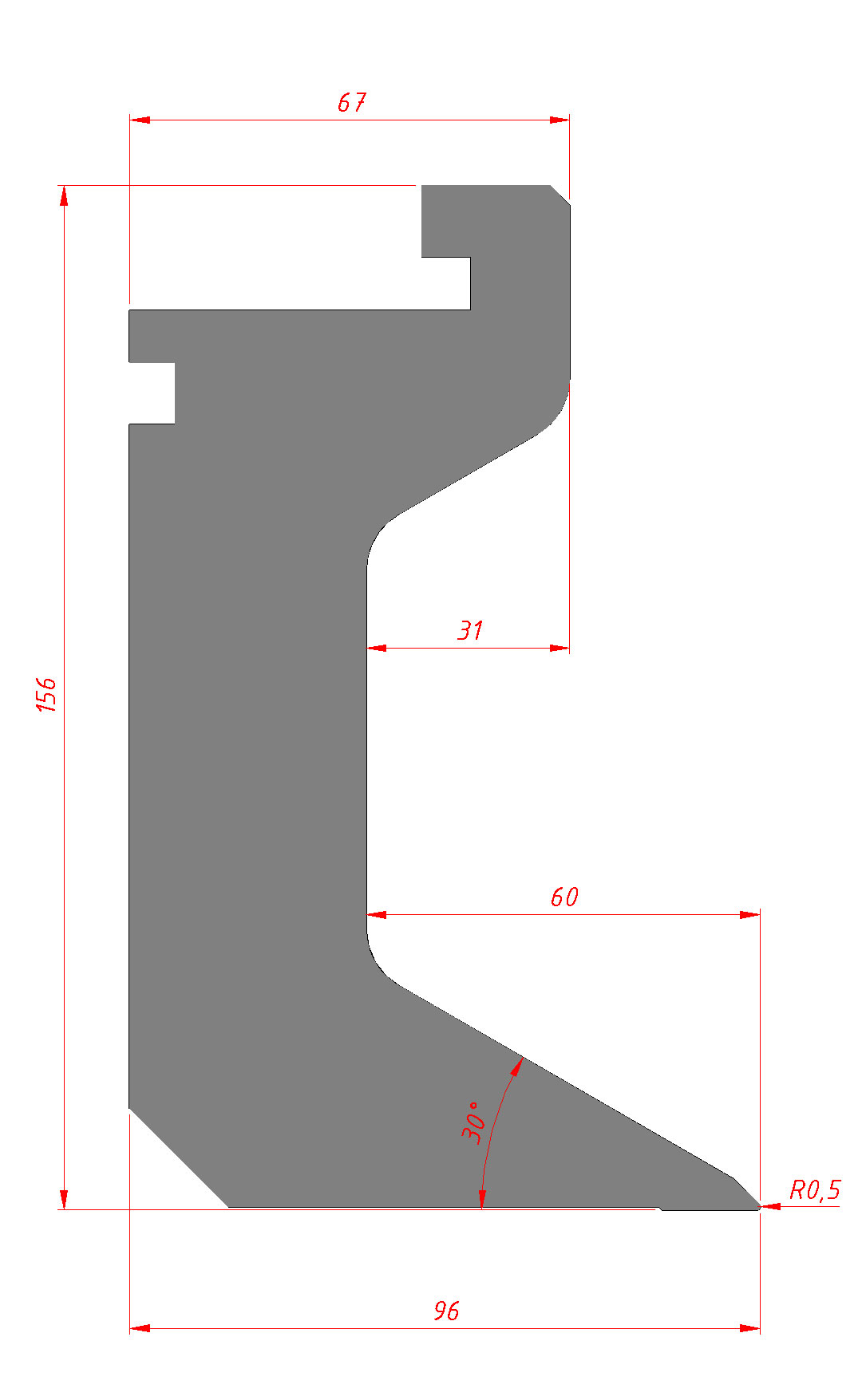

• 30° single piece sharpnose tool.

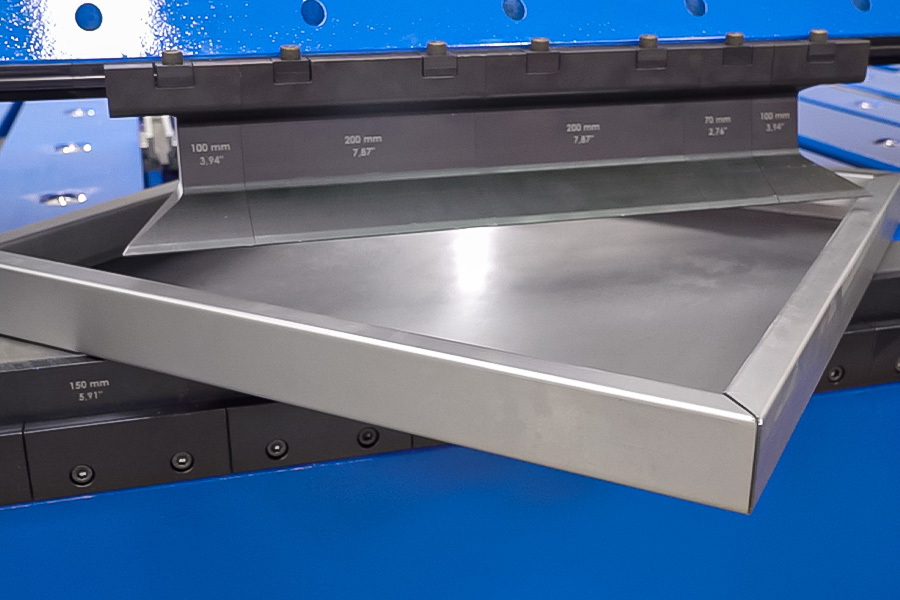

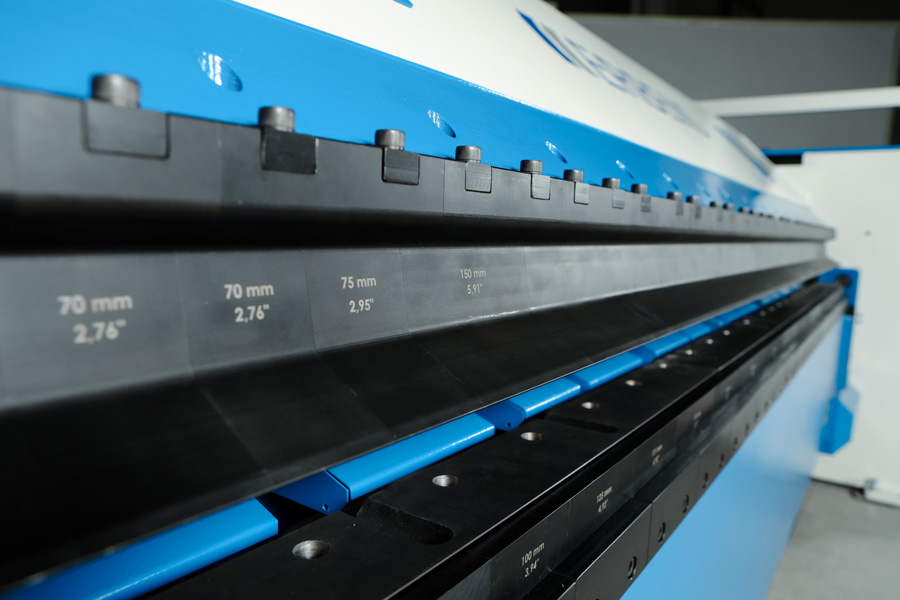

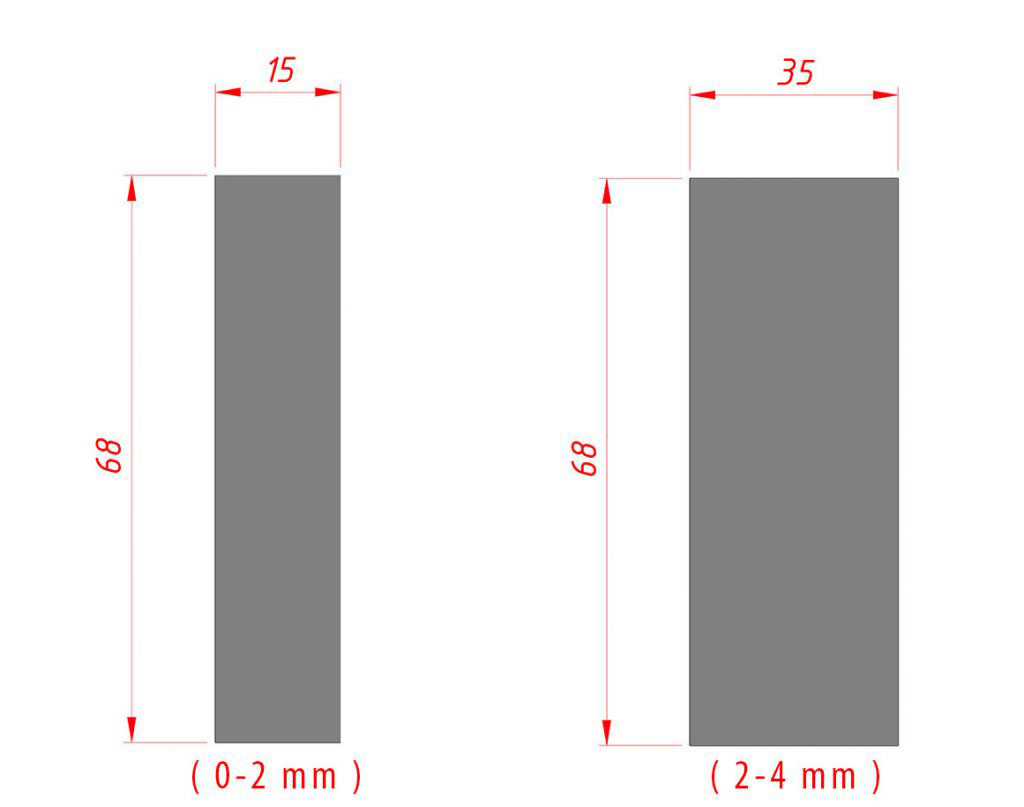

• 15 and 40 mm wide folding beam tools, single piece as 2 sets

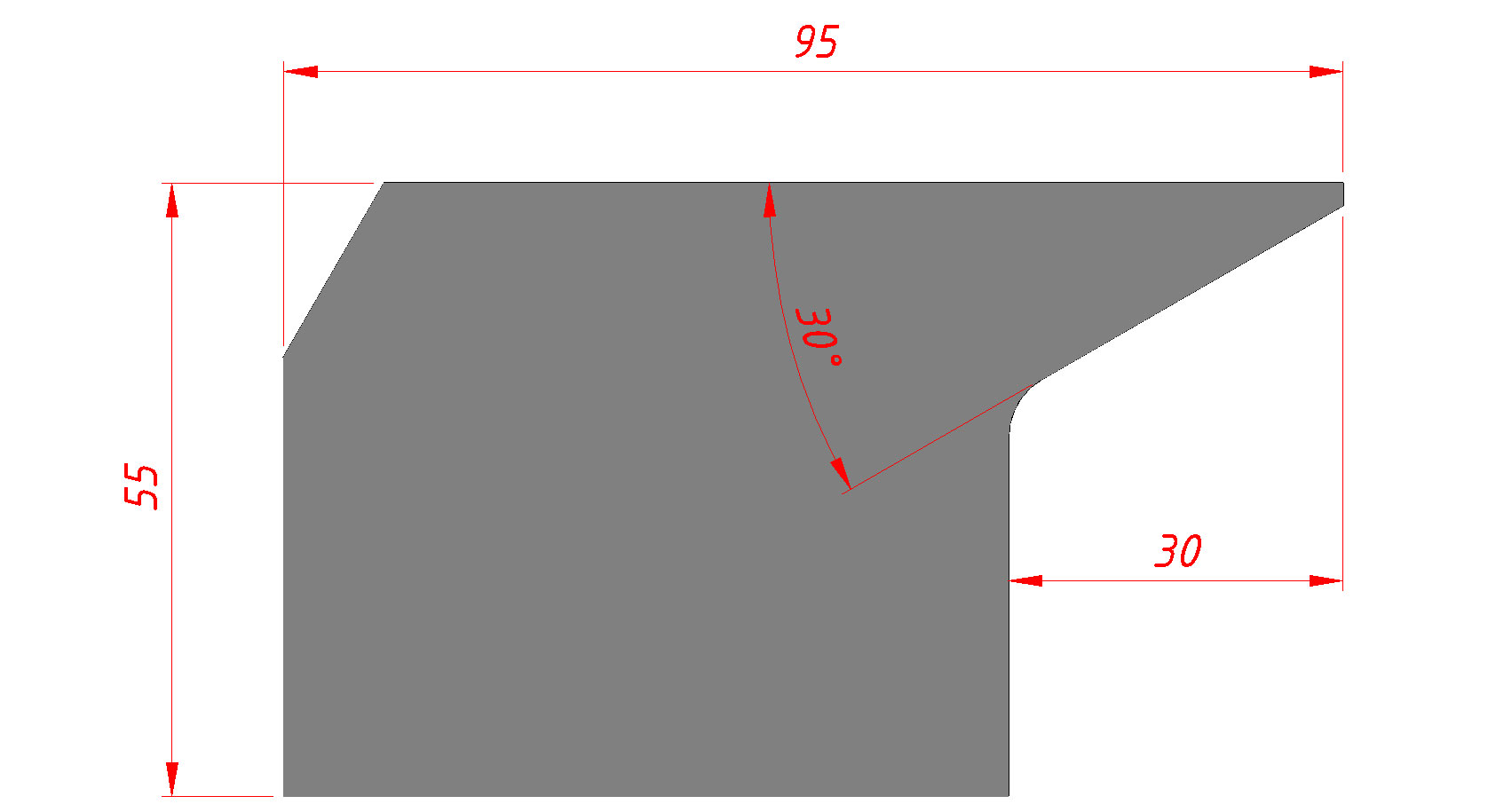

• Bottom beam tool with channels and two sets of single piece folding tools.
• 2 sets of single piece folding tools as 15 and 40 mm wide.
• Manual folding beam adjustment.

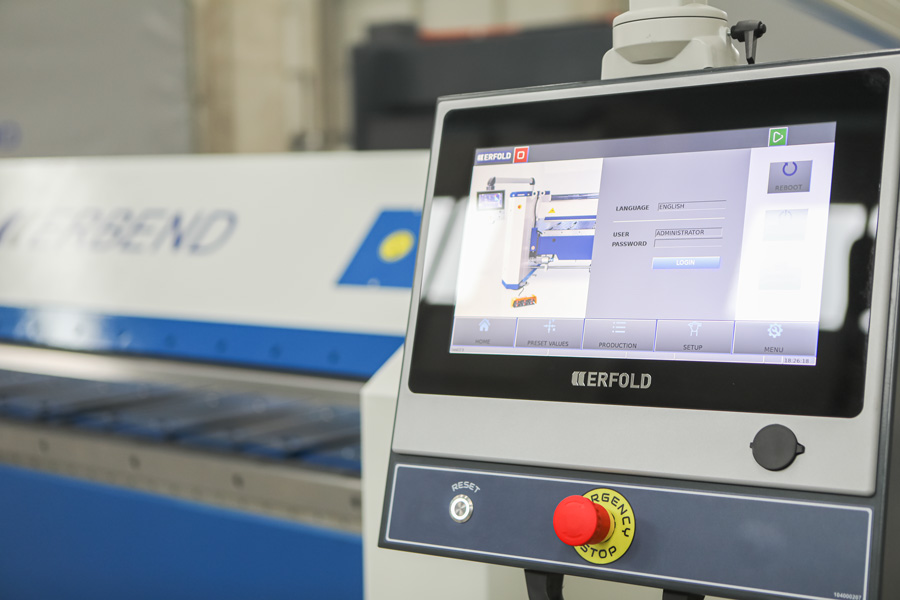

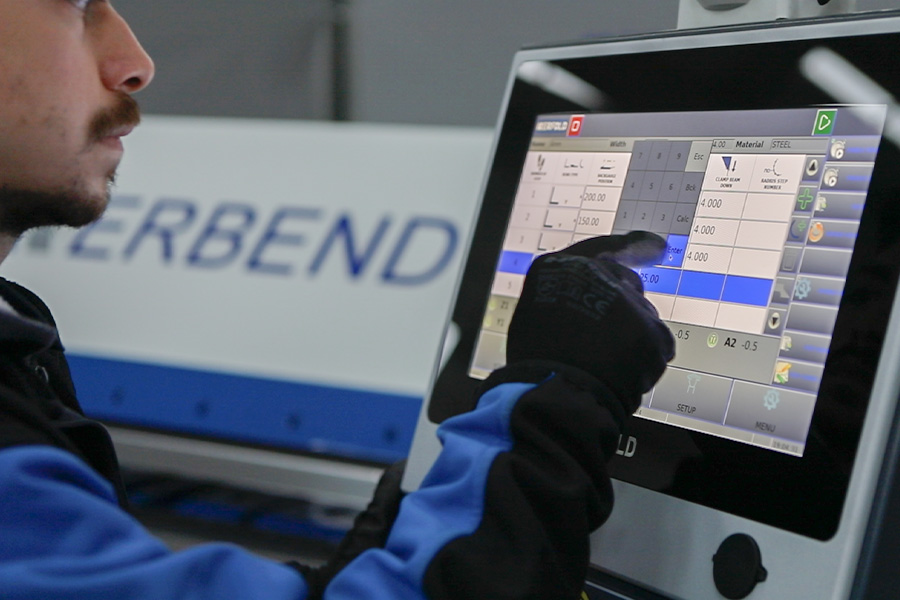

• ERFOLD BASIC CNC control software on 15.6 ” touchscreen controller with swivel arm.

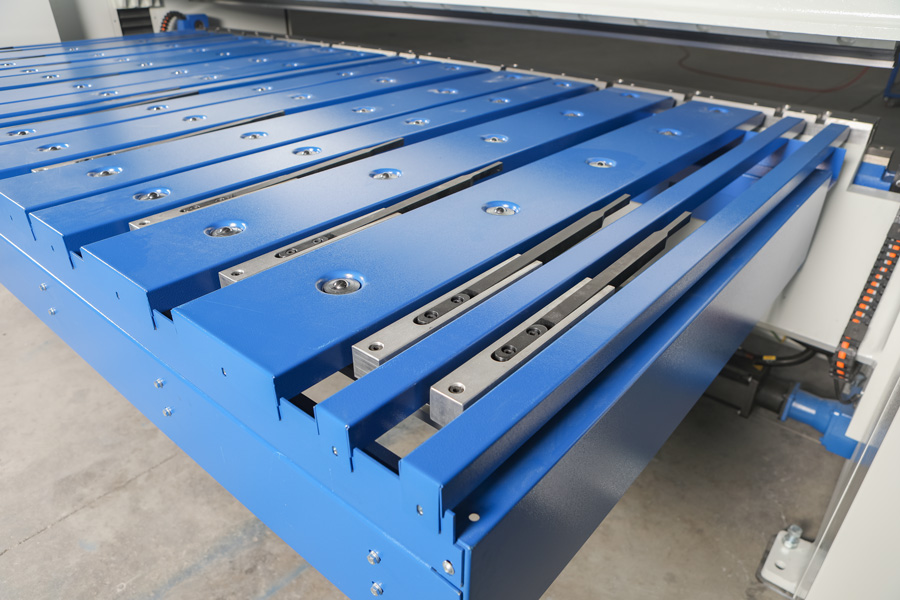

• 1000 mm servo backgauge system with rectangular sheet support table and solid fingers.
• Front light barriers.

Optional Features

• 2500 / 3200 / 4200 mm servo backgauge system upgrade with L / T / U shape sheet support table options
• ERFOLD ADVANCED 2D/3D CNC Graphic Control Software.
• Servo folding beam adjustment.
• Manual crowning system.
• Pneumatic quick goatfoot tool clamping.
• Segmented bottom or folding tools.

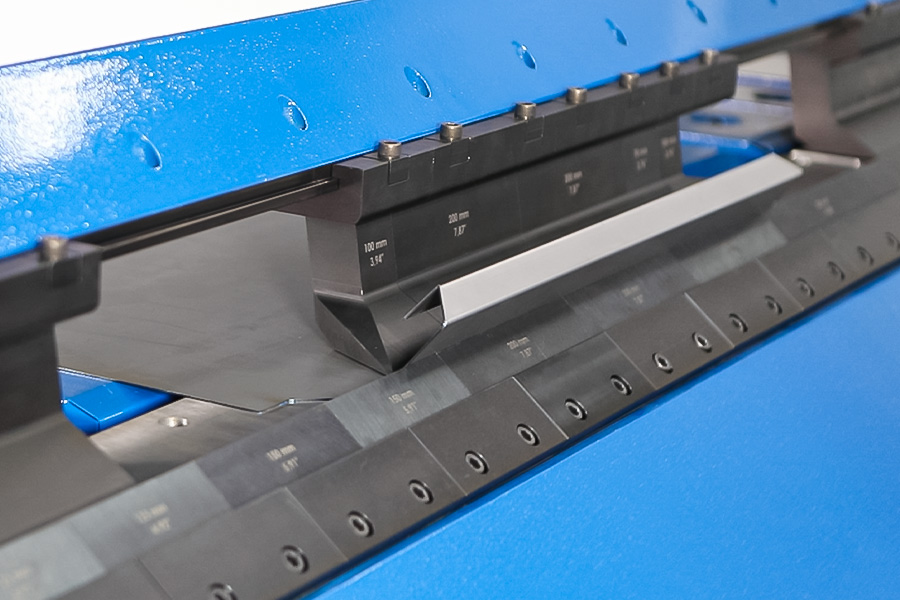

• 100 mm high segmented goat foot tool set.
