Product description

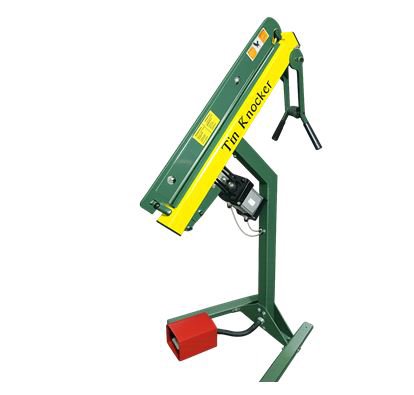

PERFECT for HVAC industry to create square-to-round duct fittings.
KEY FEATURES
Air Operation: The machine runs on standard shop air (90-120 psi)
Ergonomic Design: The design allows easy braking reducing fatigue associated with bending over a traditional hand brake.
Quick Pivot Release Handle: Allows for quick blade adjustment which speeding up the forming process.
Versatility: It can produce both off-set and center-line square-to-rounds.
Safety Features: The forming blade is fully guarded with safety glass to protect the operator’s hands from pinch points.
BENEFITS
Increased Productivity: The TK Square to Round brake produces quality fittings in less time and with less effort compared to using a manual hand brake.
Labor Savings: By speeding up the fabrication process, it saves time and money
Improved Product Quality: Consistently produces high-quality, professional-looking square-to-rounds.
Enhanced Operator Safety and Health: The design reduced physical strain leading to a safer and more comfortable working environment
Optimized Shop Operations: Improves overall shop workflow.
OPERATING THE MACHINE
- Insert Material into the break.
- Clamp material using quick pivot release.
- Push foot pedal to actuate break and bend material.
SPECIFICATIONS
- Maximum thickness 16-gauge mild steel.
- Air Power: 90-120 PSI
- Dimensions: Approx 33” x 71” x 38”
- Shipping Weight: 162 lbs.
