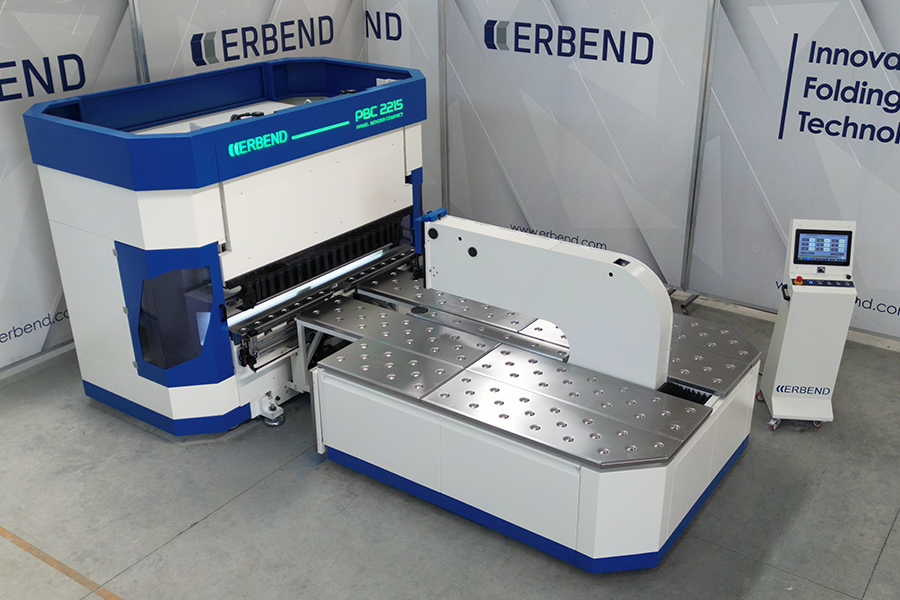

PBC Series Panel Bender Compact 1500/2000/2500

PBC Series Panel Bender Compact 1500/2000/2500

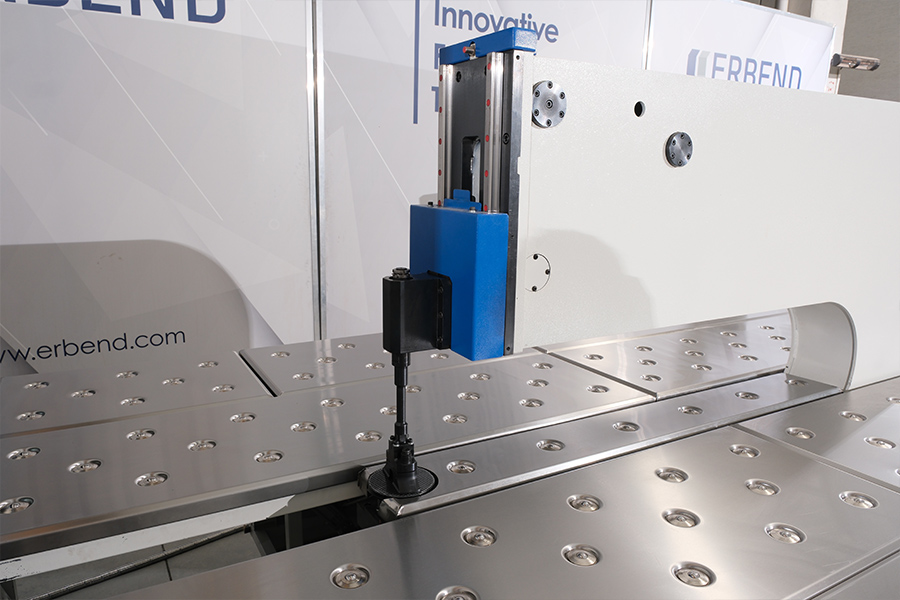

SIt has a sheet-holding system

  • In ERFOLD CNC control system, each side bend is programmed individually and profile view of the side is shown on the screen after each bend is programmed.
  • Each process type on the sides (normal bend,hemming,large radius etc.) is defined,and bending/process length is entered numerically. Application Areas

Application Areas

  • Stainless furniture / trims
  • Panels
  • Metal architectural accessories and illumination covers
  • Electrical cabinets and panels
  • Professional kitchen equipments
Categories: , Tags: , InquireHave one to Sell?Call Now

Product description

Capacity and Dimensions

Sheet length mm 2300
Maximum material length mm 2300
Maximum material width mm 1500
Maximum bend height/depth mm 254
Minimum bending size (4 sides) mm 410 x 410
Minimum bending size (1 side) mm 210
Minimum bending radius mm 1.2
Twisting speed Seconds 0.5
Pressure clearance mm 265
Maximum bending angle ° +/- 145°
Minimum bending diameter mm Steel: 1.5
Stainless steel: 1
Aluminum: 2
Software ERFOLD
Number of axis Servo 11
Machine dimensions Length mm 5000
Width mm 3915
Height mm 2850
Machine weight kg 15000

Standard Features

Video

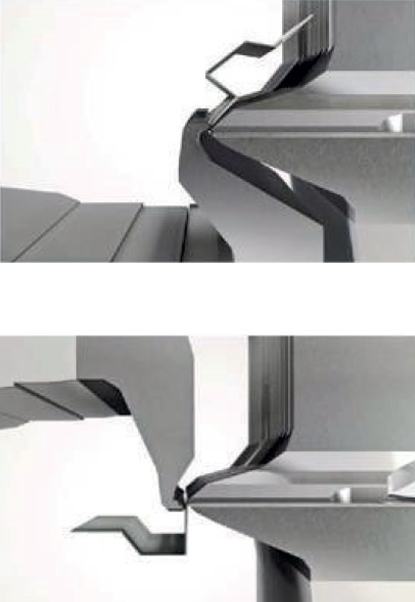

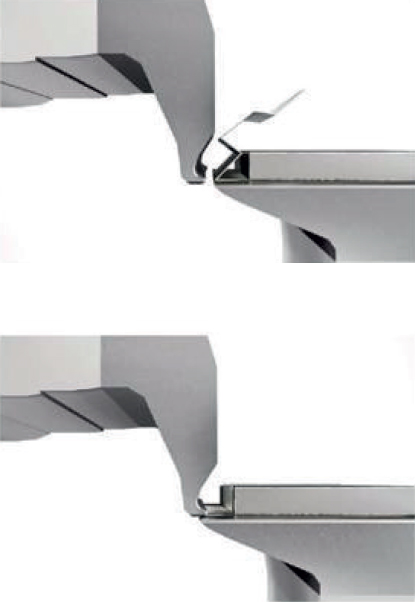

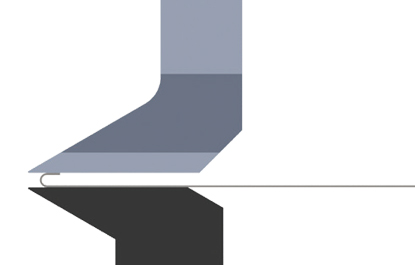

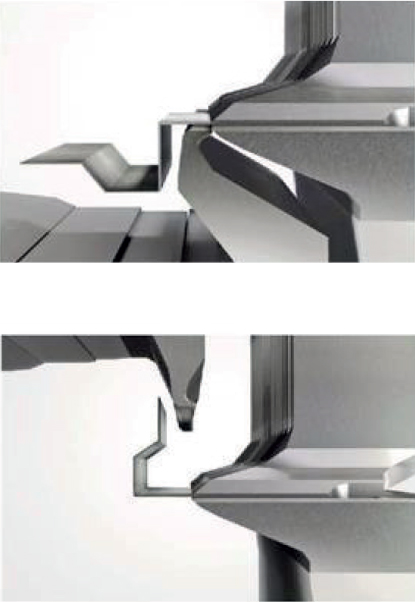

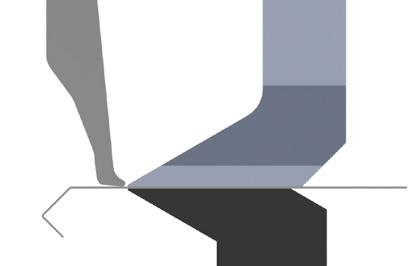

Bending Shapes
